Definition Type: ComplexType
Name: CT_Scaling
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

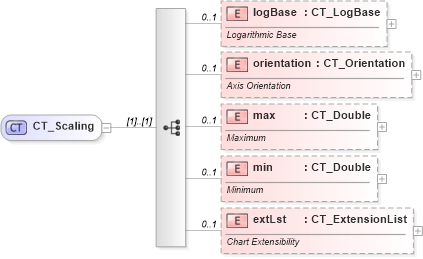

Drilldown into extLst in schema dml-chart_xsd Drilldown into min in schema dml-chart_xsd Drilldown into max in schema dml-chart_xsd Drilldown into orientation in schema dml-chart_xsd Drilldown into logBase in schema dml-chart_xsdXSD Diagram of CT_Scaling in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Scaling">
    <xsd:sequence>
        <xsd:element name="logBase" type="CT_LogBase" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Logarithmic Base</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="orientation" type="CT_Orientation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Axis Orientation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="max" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Maximum</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="min" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Minimum</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
logBase nsA:logBase 0 1
orientation nsA:orientation 0 1
max nsA:max 0 1
min nsA:min 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:scaling
