Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_SdtPr
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

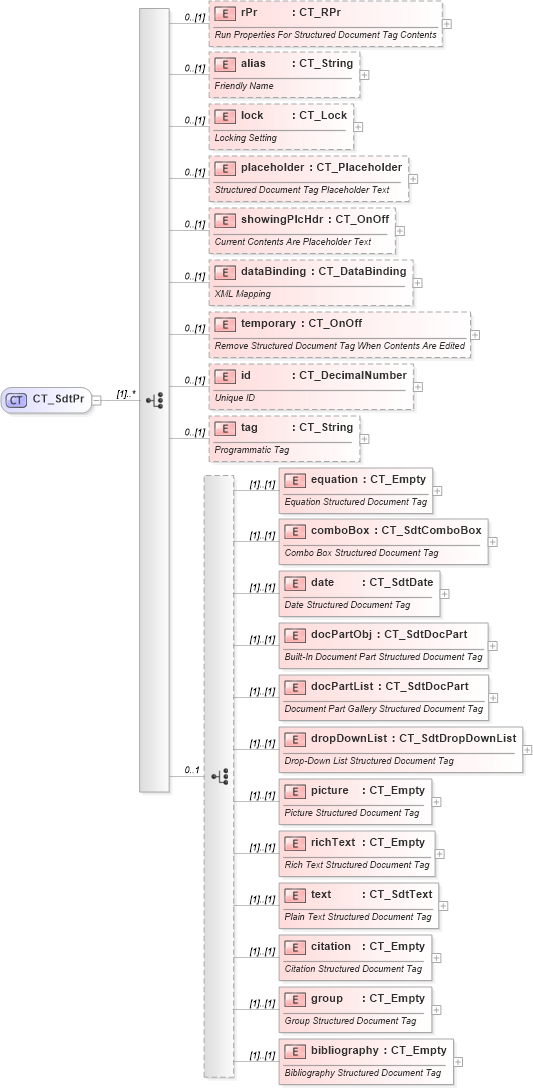

Collapse XSD Schema Diagram:
Drilldown into bibliography in schema wml_xsd Drilldown into group in schema wml_xsd Drilldown into citation in schema wml_xsd Drilldown into text in schema wml_xsd Drilldown into richText in schema wml_xsd Drilldown into picture in schema wml_xsd Drilldown into dropDownList in schema wml_xsd Drilldown into docPartList in schema wml_xsd Drilldown into docPartObj in schema wml_xsd Drilldown into date in schema wml_xsd Drilldown into comboBox in schema wml_xsd Drilldown into equation in schema wml_xsd Drilldown into tag in schema wml_xsd Drilldown into id in schema wml_xsd Drilldown into temporary in schema wml_xsd Drilldown into dataBinding in schema wml_xsd Drilldown into showingPlcHdr in schema wml_xsd Drilldown into placeholder in schema wml_xsd Drilldown into lock in schema wml_xsd Drilldown into alias in schema wml_xsd Drilldown into rPr in schema wml_xsdXSD Diagram of CT_SdtPr in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_SdtPr">
    <xsd:choice maxOccurs="unbounded">
        <xsd:element name="rPr" type="CT_RPr" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Run Properties For Structured Document Tag Contents</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alias" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Friendly Name</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lock" type="CT_Lock" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Locking Setting</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="placeholder" type="CT_Placeholder" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Structured Document Tag Placeholder Text</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showingPlcHdr" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Current Contents Are Placeholder Text</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dataBinding" type="CT_DataBinding" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>XML Mapping</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="temporary" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Remove Structured Document Tag When Contents Are Edited</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="id" type="CT_DecimalNumber" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Unique ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tag" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Programmatic Tag</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0" maxOccurs="1">
            <xsd:element name="equation" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Equation Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="comboBox" type="CT_SdtComboBox">
                <xsd:annotation>
                    <xsd:documentation>Combo Box Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="date" type="CT_SdtDate">
                <xsd:annotation>
                    <xsd:documentation>Date Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="docPartObj" type="CT_SdtDocPart">
                <xsd:annotation>
                    <xsd:documentation>Built-In Document Part Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="docPartList" type="CT_SdtDocPart">
                <xsd:annotation>
                    <xsd:documentation>Document Part Gallery Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="dropDownList" type="CT_SdtDropDownList">
                <xsd:annotation>
                    <xsd:documentation>Drop-Down List Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="picture" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Picture Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="richText" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Rich Text Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="text" type="CT_SdtText">
                <xsd:annotation>
                    <xsd:documentation>Plain Text Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="citation" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Citation Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="group" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Group Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="bibliography" type="CT_Empty">
                <xsd:annotation>
                    <xsd:documentation>Bibliography Structured Document Tag</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rPr w:rPr 0 (1)
alias w:alias 0 (1)
lock w:lock 0 (1)
placeholder w:placeholder 0 (1)
showingPlcHdr w:showingPlcHdr 0 (1)
dataBinding w:dataBinding 0 (1)
temporary w:temporary 0 (1)
id w:id 0 (1)
tag w:tag 0 (1)
equation w:equation (1) (1)
comboBox w:comboBox (1) (1)
date w:date (1) (1)
docPartObj w:docPartObj (1) (1)
docPartList w:docPartList (1) (1)
dropDownList w:dropDownList (1) (1)
picture w:picture (1) (1)
richText w:richText (1) (1)
text w:text (1) (1)
citation w:citation (1) (1)
group w:group (1) (1)
bibliography w:bibliography (1) (1)
Collapse Derivation Tree:
Collapse References:
w:sdtPr, w:sdtPr, w:sdtPr, w:sdtPr
