Definition Type: ComplexType
Name: CT_Shadow
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd
Abstract

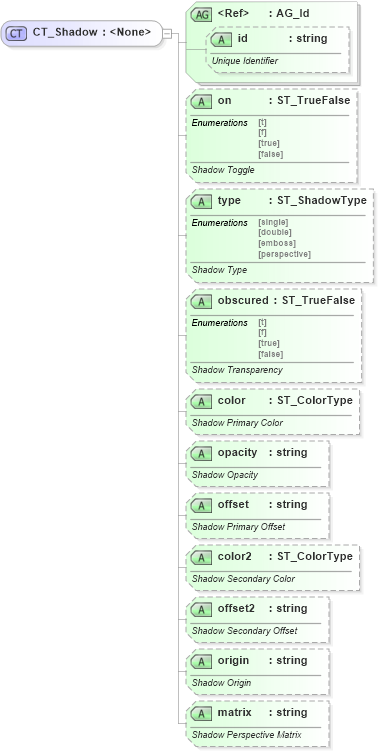

Collapse XSD Schema Diagram:
Drilldown into matrix in schema vml-main_xsd Drilldown into origin in schema vml-main_xsd Drilldown into offset2 in schema vml-main_xsd Drilldown into color2 in schema vml-main_xsd Drilldown into offset in schema vml-main_xsd Drilldown into opacity in schema vml-main_xsd Drilldown into color in schema vml-main_xsd Drilldown into obscured in schema vml-main_xsd Drilldown into type in schema vml-main_xsd Drilldown into on in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsdXSD Diagram of CT_Shadow in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Shadow">
    <xsd:attributeGroup ref="AG_Id" />
    <xsd:attribute name="on" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="type" type="ST_ShadowType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="obscured" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Transparency</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="color" type="ST_ColorType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Primary Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="opacity" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Opacity</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="offset" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Primary Offset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="color2" type="ST_ColorType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Secondary Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="offset2" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Secondary Offset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="origin" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Origin</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="matrix" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shadow Perspective Matrix</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
on v:on Optional
type v:type Optional
obscured v:obscured Optional
color v:color Optional
opacity v:opacity Optional
offset v:offset Optional
color2 v:color2 Optional
offset2 v:offset2 Optional
origin v:origin Optional
matrix v:matrix Optional
Collapse Derivation Tree:
Collapse References:
v:shadow
