Definition Type: ComplexType
Name: CT_ShapeLayout
Namespace: urn:schemas-microsoft-com:office:office
Containing Schema: vml-officeDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

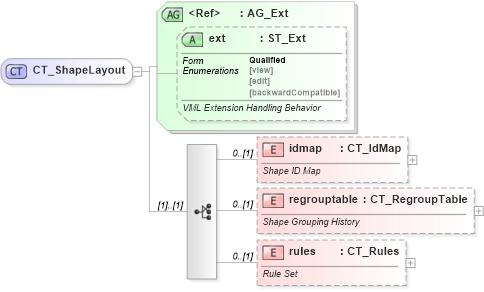

Drilldown into rules in schema vml-officedrawing_xsd Drilldown into regrouptable in schema vml-officedrawing_xsd Drilldown into idmap in schema vml-officedrawing_xsd Drilldown into ext in schema vml-main_xsd Drilldown into AG_Ext in schema vml-main_xsdXSD Diagram of CT_ShapeLayout in schema vml-officedrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ShapeLayout">
    <xsd:all>
        <xsd:element name="idmap" type="CT_IdMap" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Shape ID Map</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="regrouptable" type="CT_RegroupTable" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Shape Grouping History</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="rules" type="CT_Rules" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Rule Set</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:all>
    <xsd:attributeGroup ref="v:AG_Ext" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idmap o:idmap 0 (1)
regrouptable o:regrouptable 0 (1)
rules o:rules 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ext v:ext (Optional)
Collapse Derivation Tree:
Collapse References:
o:shapelayout
