Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_SortState
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-autoFilter.xsd
Abstract

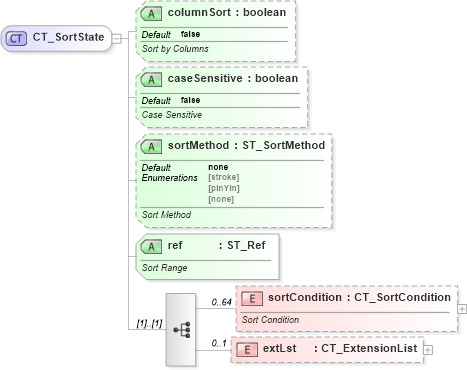

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-autofilter_xsd Drilldown into sortCondition in schema sml-autofilter_xsd Drilldown into ref in schema sml-autofilter_xsd Drilldown into sortMethod in schema sml-autofilter_xsd Drilldown into caseSensitive in schema sml-autofilter_xsd Drilldown into columnSort in schema sml-autofilter_xsdXSD Diagram of CT_SortState in schema sml-autofilter_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_SortState">
    <xsd:sequence>
        <xsd:element name="sortCondition" minOccurs="0" maxOccurs="64" type="CT_SortCondition">
            <xsd:annotation>
                <xsd:documentation>Sort Condition</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="columnSort" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Sort by Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="caseSensitive" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Case Sensitive</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sortMethod" type="ST_SortMethod" use="optional" default="none">
        <xsd:annotation>
            <xsd:documentation>Sort Method</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ref" type="ST_Ref" use="required">
        <xsd:annotation>
            <xsd:documentation>Sort Range</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sortCondition nsM:sortCondition 0 64
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
columnSort nsM:columnSort false Optional
caseSensitive nsM:caseSensitive false Optional
sortMethod nsM:sortMethod none Optional
ref nsM:ref Required
Collapse Derivation Tree:
Collapse References:
nsM:sortState, nsM:sortState, nsM:sortState, nsM:sortState, nsM:sortState
