Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Sst
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-sharedStringTable.xsd
Abstract
Collapse XSD Schema Diagram:

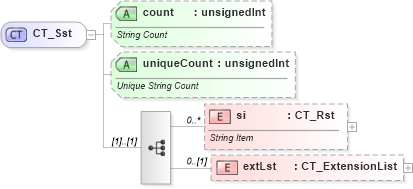

Drilldown into extLst in schema sml-sharedstringtable_xsd Drilldown into si in schema sml-sharedstringtable_xsd Drilldown into uniqueCount in schema sml-sharedstringtable_xsd Drilldown into count in schema sml-sharedstringtable_xsdXSD Diagram of CT_Sst in schema sml-sharedstringtable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Sst">
    <xsd:sequence>
        <xsd:element name="si" type="CT_Rst" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>String Item</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="count" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>String Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="uniqueCount" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Unique String Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
si nsM:si 0 unbounded
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
count nsM:count Optional
uniqueCount nsM:uniqueCount Optional
Collapse Derivation Tree:
Collapse References:
nsM:sst
