Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_String
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

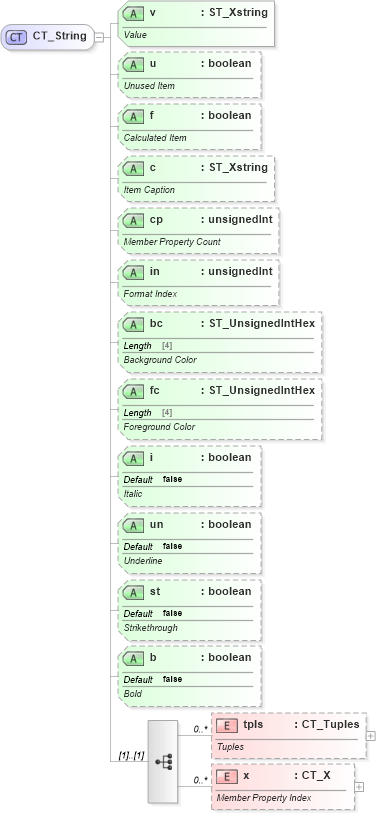

Collapse XSD Schema Diagram:
Drilldown into x in schema sml-pivottable_xsd Drilldown into tpls in schema sml-pivottable_xsd Drilldown into b in schema sml-pivottable_xsd Drilldown into st in schema sml-pivottable_xsd Drilldown into un in schema sml-pivottable_xsd Drilldown into i in schema sml-pivottable_xsd Drilldown into fc in schema sml-pivottable_xsd Drilldown into bc in schema sml-pivottable_xsd Drilldown into in in schema sml-pivottable_xsd Drilldown into cp in schema sml-pivottable_xsd Drilldown into c in schema sml-pivottable_xsd Drilldown into f in schema sml-pivottable_xsd Drilldown into u in schema sml-pivottable_xsd Drilldown into v in schema sml-pivottable_xsdXSD Diagram of CT_String in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_String">
    <xsd:sequence>
        <xsd:element name="tpls" minOccurs="0" maxOccurs="unbounded" type="CT_Tuples">
            <xsd:annotation>
                <xsd:documentation>Tuples</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="x" minOccurs="0" maxOccurs="unbounded" type="CT_X">
            <xsd:annotation>
                <xsd:documentation>Member Property Index</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="v" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Value</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="u" type="xsd:boolean">
        <xsd:annotation>
            <xsd:documentation>Unused Item</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="f" type="xsd:boolean">
        <xsd:annotation>
            <xsd:documentation>Calculated Item</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="c" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Item Caption</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="cp" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Member Property Count</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="in" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Format Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bc" type="ST_UnsignedIntHex" use="optional">
        <xsd:annotation>
            <xsd:documentation>Background Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fc" type="ST_UnsignedIntHex" use="optional">
        <xsd:annotation>
            <xsd:documentation>Foreground Color</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="i" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Italic</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="un" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Underline</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="st" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Strikethrough</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="b" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Bold</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tpls nsM:tpls 0 unbounded
x nsM:x 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
v nsM:v Required
u nsM:u (Optional)
f nsM:f (Optional)
c nsM:c (Optional)
cp nsM:cp (Optional)
in nsM:in Optional
bc nsM:bc Optional
fc nsM:fc Optional
i nsM:i false Optional
un nsM:un false Optional
st nsM:st false Optional
b nsM:b false Optional
Collapse Derivation Tree:
Collapse References:
nsM:s, nsM:s, nsM:s, nsM:s
