Definition Type: ComplexType
Name: CT_StyleDefinitionHeader
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramStyleDefinition.xsd
Abstract

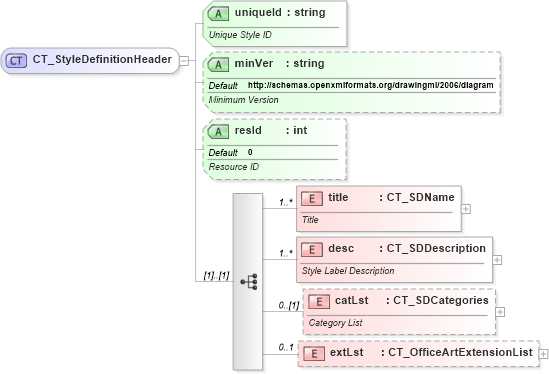

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-diagramstyledefinition_xsd Drilldown into catLst in schema dml-diagramstyledefinition_xsd Drilldown into desc in schema dml-diagramstyledefinition_xsd Drilldown into title in schema dml-diagramstyledefinition_xsd Drilldown into resId in schema dml-diagramstyledefinition_xsd Drilldown into minVer in schema dml-diagramstyledefinition_xsd Drilldown into uniqueId in schema dml-diagramstyledefinition_xsdXSD Diagram of CT_StyleDefinitionHeader in schema dml-diagramstyledefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_StyleDefinitionHeader">
    <xsd:sequence>
        <xsd:element name="title" type="CT_SDName" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Title</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="desc" type="CT_SDDescription" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Style Label Description</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="catLst" type="CT_SDCategories" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Category List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="uniqueId" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Unique Style ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minVer" type="xsd:string" use="optional" default="http://schemas.openxmlformats.org/drawingml/2006/diagram">
        <xsd:annotation>
            <xsd:documentation>Minimum Version</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="resId" type="xsd:int" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Resource ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title nsC:title 1 unbounded
desc nsC:desc 1 unbounded
catLst nsC:catLst 0 (1)
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
uniqueId nsC:uniqueId Required
minVer nsC:minVer http://schemas.openxmlformats.org/drawingml/2006/diagram Optional
resId nsC:resId 0 Optional
Collapse Derivation Tree:
Collapse References:
nsC:styleDefHdr, nsC:styleDefHdr
