Definition Type: ComplexType
Name: CT_StyleMatrix
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseStylesheet.xsd
Abstract

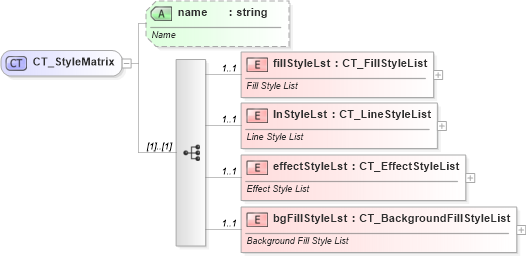

Collapse XSD Schema Diagram:
Drilldown into bgFillStyleLst in schema dml-basestylesheet_xsd Drilldown into effectStyleLst in schema dml-basestylesheet_xsd Drilldown into lnStyleLst in schema dml-basestylesheet_xsd Drilldown into fillStyleLst in schema dml-basestylesheet_xsd Drilldown into name in schema dml-basestylesheet_xsdXSD Diagram of CT_StyleMatrix in schema dml-basestylesheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_StyleMatrix">
    <xsd:sequence>
        <xsd:element name="fillStyleLst" type="CT_FillStyleList" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Fill Style List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lnStyleLst" type="CT_LineStyleList" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Line Style List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="effectStyleLst" type="CT_EffectStyleList" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Effect Style List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bgFillStyleLst" type="CT_BackgroundFillStyleList" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Background Fill Style List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fillStyleLst a:fillStyleLst 1 1
lnStyleLst a:lnStyleLst 1 1
effectStyleLst a:effectStyleLst 1 1
bgFillStyleLst a:bgFillStyleLst 1 1
Collapse Child Attributes:
Name Type Default Value Use
name a:name Optional
Collapse Derivation Tree:
Collapse References:
a:fmtScheme, a:fmtScheme
