Definition Type: ComplexType
Name: CT_SurfaceChart
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

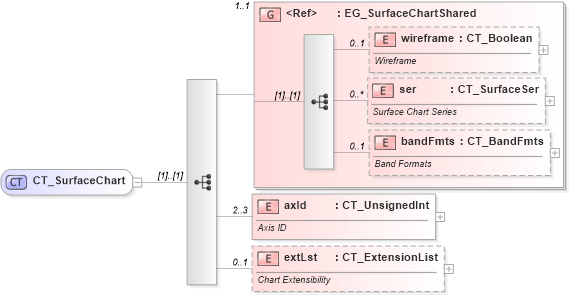

Drilldown into extLst in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into bandFmts in schema dml-chart_xsd Drilldown into ser in schema dml-chart_xsd Drilldown into wireframe in schema dml-chart_xsd Drilldown into EG_SurfaceChartShared in schema dml-chart_xsdXSD Diagram of CT_SurfaceChart in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_SurfaceChart">
    <xsd:sequence>
        <xsd:group ref="EG_SurfaceChartShared" minOccurs="1" maxOccurs="1" />
        <xsd:element name="axId" type="CT_UnsignedInt" minOccurs="2" maxOccurs="3">
            <xsd:annotation>
                <xsd:documentation>Axis ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
wireframe nsA:wireframe 0 1
ser nsA:ser 0 unbounded
bandFmts nsA:bandFmts 0 1
axId nsA:axId 2 3
extLst nsA:extLst 0 1
<xs:group> nsA:EG_SurfaceChartShared 1 1
Collapse Derivation Tree:
Collapse References:
nsA:surfaceChart
