Definition Type: ComplexType
Name: CT_TableCell
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-table.xsd
Abstract

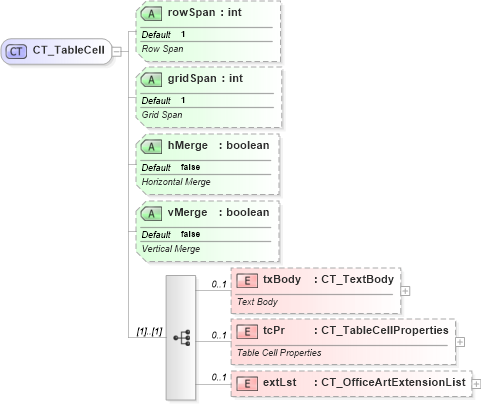

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-table_xsd Drilldown into tcPr in schema dml-table_xsd Drilldown into txBody in schema dml-table_xsd Drilldown into vMerge in schema dml-table_xsd Drilldown into hMerge in schema dml-table_xsd Drilldown into gridSpan in schema dml-table_xsd Drilldown into rowSpan in schema dml-table_xsdXSD Diagram of CT_TableCell in schema dml-table_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TableCell">
    <xsd:sequence>
        <xsd:element name="txBody" type="CT_TextBody" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Text Body</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tcPr" type="CT_TableCellProperties" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Cell Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="rowSpan" type="xsd:int" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>Row Span</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="gridSpan" type="xsd:int" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>Grid Span</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hMerge" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Horizontal Merge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="vMerge" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Vertical Merge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
txBody a:txBody 0 1
tcPr a:tcPr 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
rowSpan a:rowSpan 1 Optional
gridSpan a:gridSpan 1 Optional
hMerge a:hMerge false Optional
vMerge a:vMerge false Optional
Collapse Derivation Tree:
  • CT_TableCell
Collapse References:
a:tc
