Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TableColumn
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-table.xsd
Abstract

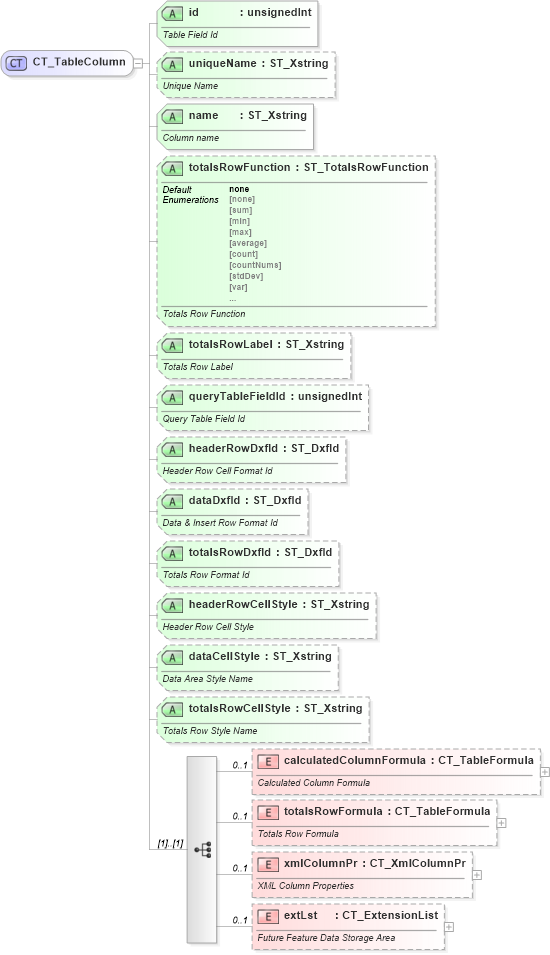

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-table_xsd Drilldown into xmlColumnPr in schema sml-table_xsd Drilldown into totalsRowFormula in schema sml-table_xsd Drilldown into calculatedColumnFormula in schema sml-table_xsd Drilldown into totalsRowCellStyle in schema sml-table_xsd Drilldown into dataCellStyle in schema sml-table_xsd Drilldown into headerRowCellStyle in schema sml-table_xsd Drilldown into totalsRowDxfId in schema sml-table_xsd Drilldown into dataDxfId in schema sml-table_xsd Drilldown into headerRowDxfId in schema sml-table_xsd Drilldown into queryTableFieldId in schema sml-table_xsd Drilldown into totalsRowLabel in schema sml-table_xsd Drilldown into totalsRowFunction in schema sml-table_xsd Drilldown into name in schema sml-table_xsd Drilldown into uniqueName in schema sml-table_xsd Drilldown into id in schema sml-table_xsdXSD Diagram of CT_TableColumn in schema sml-table_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TableColumn">
    <xsd:sequence>
        <xsd:element name="calculatedColumnFormula" type="CT_TableFormula" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Calculated Column Formula</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="totalsRowFormula" type="CT_TableFormula" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Totals Row Formula</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="xmlColumnPr" type="CT_XmlColumnPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>XML Column Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Table Field Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="uniqueName" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Unique Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="name" type="ST_Xstring" use="required">
        <xsd:annotation>
            <xsd:documentation>Column name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="totalsRowFunction" type="ST_TotalsRowFunction" use="optional" default="none">
        <xsd:annotation>
            <xsd:documentation>Totals Row Function</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="totalsRowLabel" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Totals Row Label</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="queryTableFieldId" type="xsd:unsignedInt" use="optional">
        <xsd:annotation>
            <xsd:documentation>Query Table Field Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="headerRowDxfId" type="ST_DxfId" use="optional">
        <xsd:annotation>
            <xsd:documentation>Header Row Cell Format Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dataDxfId" type="ST_DxfId" use="optional">
        <xsd:annotation>
            <xsd:documentation>Data &amp; Insert Row Format Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="totalsRowDxfId" type="ST_DxfId" use="optional">
        <xsd:annotation>
            <xsd:documentation>Totals Row Format Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="headerRowCellStyle" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Header Row Cell Style</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dataCellStyle" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Data Area Style Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="totalsRowCellStyle" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Totals Row Style Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
calculatedColumnFormula nsM:calculatedColumnFormula 0 1
totalsRowFormula nsM:totalsRowFormula 0 1
xmlColumnPr nsM:xmlColumnPr 0 1
extLst nsM:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
id nsM:id Required
uniqueName nsM:uniqueName Optional
name nsM:name Required
totalsRowFunction nsM:totalsRowFunction none Optional
totalsRowLabel nsM:totalsRowLabel Optional
queryTableFieldId nsM:queryTableFieldId Optional
headerRowDxfId nsM:headerRowDxfId Optional
dataDxfId nsM:dataDxfId Optional
totalsRowDxfId nsM:totalsRowDxfId Optional
headerRowCellStyle nsM:headerRowCellStyle Optional
dataCellStyle nsM:dataCellStyle Optional
totalsRowCellStyle nsM:totalsRowCellStyle Optional
Collapse Derivation Tree:
Collapse References:
nsM:tableColumn
