Definition Type: ComplexType
Name: CT_TableStyle
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-tableStyle.xsd
Abstract
Collapse XSD Schema Diagram:

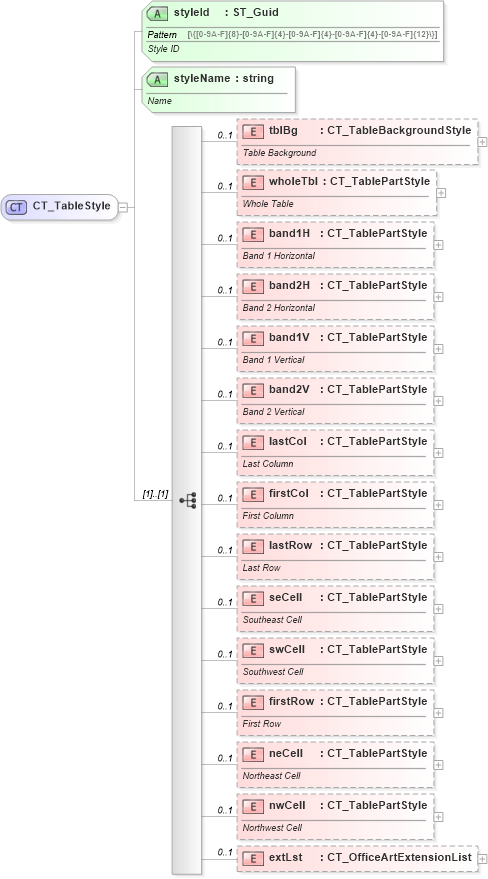

Drilldown into extLst in schema dml-tablestyle_xsd Drilldown into nwCell in schema dml-tablestyle_xsd Drilldown into neCell in schema dml-tablestyle_xsd Drilldown into firstRow in schema dml-tablestyle_xsd Drilldown into swCell in schema dml-tablestyle_xsd Drilldown into seCell in schema dml-tablestyle_xsd Drilldown into lastRow in schema dml-tablestyle_xsd Drilldown into firstCol in schema dml-tablestyle_xsd Drilldown into lastCol in schema dml-tablestyle_xsd Drilldown into band2V in schema dml-tablestyle_xsd Drilldown into band1V in schema dml-tablestyle_xsd Drilldown into band2H in schema dml-tablestyle_xsd Drilldown into band1H in schema dml-tablestyle_xsd Drilldown into wholeTbl in schema dml-tablestyle_xsd Drilldown into tblBg in schema dml-tablestyle_xsd Drilldown into styleName in schema dml-tablestyle_xsd Drilldown into styleId in schema dml-tablestyle_xsdXSD Diagram of CT_TableStyle in schema dml-tablestyle_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TableStyle">
    <xsd:sequence>
        <xsd:element name="tblBg" type="CT_TableBackgroundStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Background</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="wholeTbl" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Whole Table</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="band1H" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Band 1 Horizontal</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="band2H" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Band 2 Horizontal</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="band1V" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Band 1 Vertical</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="band2V" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Band 2 Vertical</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lastCol" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Last Column</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="firstCol" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>First Column</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lastRow" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Last Row</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="seCell" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Southeast Cell</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="swCell" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Southwest Cell</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="firstRow" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>First Row</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="neCell" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Northeast Cell</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="nwCell" type="CT_TablePartStyle" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Northwest Cell</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="styleId" type="ST_Guid" use="required">
        <xsd:annotation>
            <xsd:documentation>Style ID</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="styleName" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tblBg a:tblBg 0 1
wholeTbl a:wholeTbl 0 1
band1H a:band1H 0 1
band2H a:band2H 0 1
band1V a:band1V 0 1
band2V a:band2V 0 1
lastCol a:lastCol 0 1
firstCol a:firstCol 0 1
lastRow a:lastRow 0 1
seCell a:seCell 0 1
swCell a:swCell 0 1
firstRow a:firstRow 0 1
neCell a:neCell 0 1
nwCell a:nwCell 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
styleId a:styleId Required
styleName a:styleName Required
Collapse Derivation Tree:
Collapse References:
a:tableStyle, a:tblStyle
