Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TableStyleInfo
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-table.xsd
Abstract

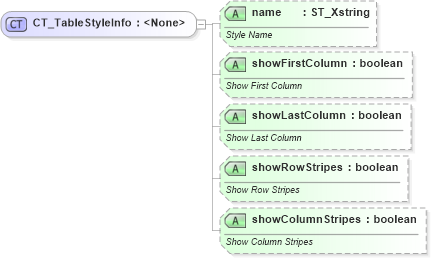

Collapse XSD Schema Diagram:
Drilldown into showColumnStripes in schema sml-table_xsd Drilldown into showRowStripes in schema sml-table_xsd Drilldown into showLastColumn in schema sml-table_xsd Drilldown into showFirstColumn in schema sml-table_xsd Drilldown into name in schema sml-table_xsdXSD Diagram of CT_TableStyleInfo in schema sml-table_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TableStyleInfo">
    <xsd:attribute name="name" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Style Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showFirstColumn" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Show First Column</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showLastColumn" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Show Last Column</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showRowStripes" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Show Row Stripes</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="showColumnStripes" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Show Column Stripes</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Optional
showFirstColumn nsM:showFirstColumn Optional
showLastColumn nsM:showLastColumn Optional
showRowStripes nsM:showRowStripes Optional
showColumnStripes nsM:showColumnStripes Optional
Collapse Derivation Tree:
Collapse References:
nsM:tableStyleInfo
