Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TblPrBase
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

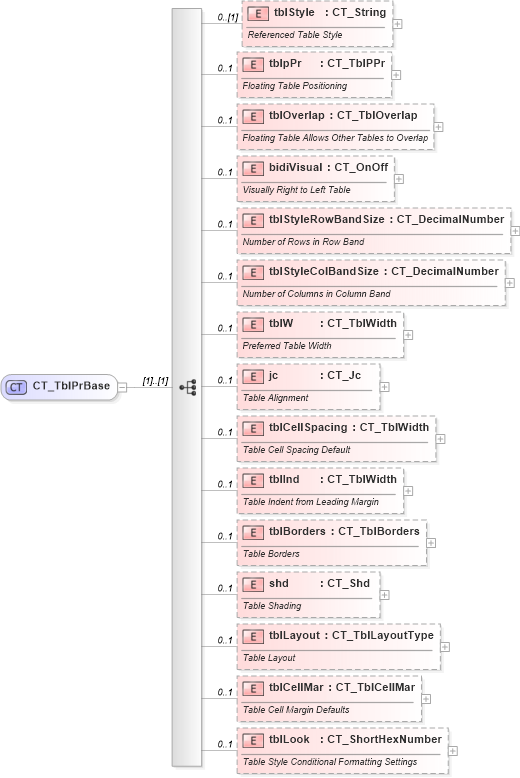

Collapse XSD Schema Diagram:
Drilldown into tblLook in schema wml_xsd Drilldown into tblCellMar in schema wml_xsd Drilldown into tblLayout in schema wml_xsd Drilldown into shd in schema wml_xsd Drilldown into tblBorders in schema wml_xsd Drilldown into tblInd in schema wml_xsd Drilldown into tblCellSpacing in schema wml_xsd Drilldown into jc in schema wml_xsd Drilldown into tblW in schema wml_xsd Drilldown into tblStyleColBandSize in schema wml_xsd Drilldown into tblStyleRowBandSize in schema wml_xsd Drilldown into bidiVisual in schema wml_xsd Drilldown into tblOverlap in schema wml_xsd Drilldown into tblpPr in schema wml_xsd Drilldown into tblStyle in schema wml_xsdXSD Diagram of CT_TblPrBase in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TblPrBase">
    <xsd:sequence>
        <xsd:element name="tblStyle" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Referenced Table Style</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblpPr" type="CT_TblPPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Floating Table Positioning</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblOverlap" type="CT_TblOverlap" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Floating Table Allows Other Tables to Overlap</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bidiVisual" type="CT_OnOff" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Visually Right to Left Table</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblStyleRowBandSize" type="CT_DecimalNumber" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Number of Rows in Row Band</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblStyleColBandSize" type="CT_DecimalNumber" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Number of Columns in Column Band</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblW" type="CT_TblWidth" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Preferred Table Width</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="jc" type="CT_Jc" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Alignment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblCellSpacing" type="CT_TblWidth" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Cell Spacing Default</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblInd" type="CT_TblWidth" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Indent from Leading Margin</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblBorders" type="CT_TblBorders" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Borders</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="shd" type="CT_Shd" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Shading</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblLayout" type="CT_TblLayoutType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Layout</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblCellMar" type="CT_TblCellMar" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Cell Margin Defaults</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tblLook" type="CT_ShortHexNumber" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Table Style Conditional Formatting Settings</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tblStyle w:tblStyle 0 (1)
tblpPr w:tblpPr 0 1
tblOverlap w:tblOverlap 0 1
bidiVisual w:bidiVisual 0 1
tblStyleRowBandSize w:tblStyleRowBandSize 0 1
tblStyleColBandSize w:tblStyleColBandSize 0 1
tblW w:tblW 0 1
jc w:jc 0 1
tblCellSpacing w:tblCellSpacing 0 1
tblInd w:tblInd 0 1
tblBorders w:tblBorders 0 1
shd w:shd 0 1
tblLayout w:tblLayout 0 1
tblCellMar w:tblCellMar 0 1
tblLook w:tblLook 0 1
Collapse Derivation Tree:
Collapse References:
w:CT_TblPr, w:tblPr, w:tblPr, w:tblPr
