Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TextBodyProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-text.xsd
Abstract

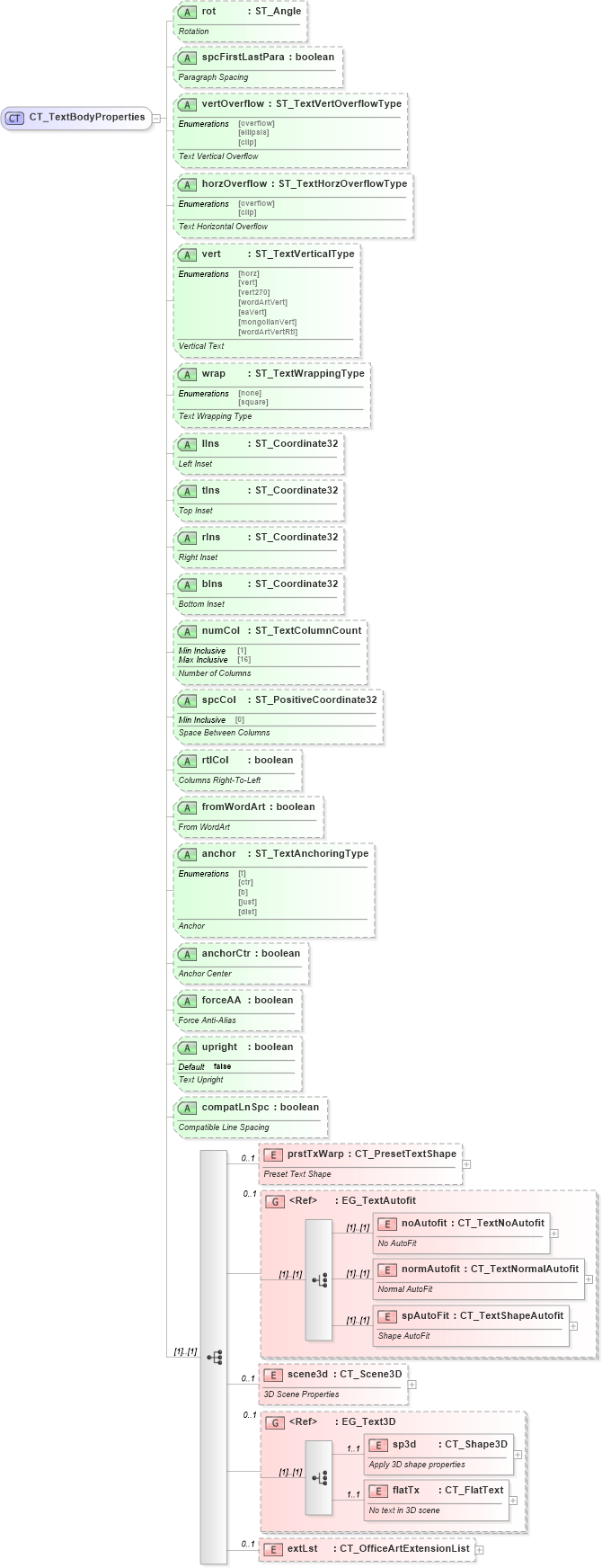

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-text_xsd Drilldown into flatTx in schema dml-shape3dstyles_xsd Drilldown into sp3d in schema dml-shape3dstyles_xsd Drilldown into EG_Text3D in schema dml-shape3dstyles_xsd Drilldown into scene3d in schema dml-text_xsd Drilldown into spAutoFit in schema dml-text_xsd Drilldown into normAutofit in schema dml-text_xsd Drilldown into noAutofit in schema dml-text_xsd Drilldown into EG_TextAutofit in schema dml-text_xsd Drilldown into prstTxWarp in schema dml-text_xsd Drilldown into compatLnSpc in schema dml-text_xsd Drilldown into upright in schema dml-text_xsd Drilldown into forceAA in schema dml-text_xsd Drilldown into anchorCtr in schema dml-text_xsd Drilldown into anchor in schema dml-text_xsd Drilldown into fromWordArt in schema dml-text_xsd Drilldown into rtlCol in schema dml-text_xsd Drilldown into spcCol in schema dml-text_xsd Drilldown into numCol in schema dml-text_xsd Drilldown into bIns in schema dml-text_xsd Drilldown into rIns in schema dml-text_xsd Drilldown into tIns in schema dml-text_xsd Drilldown into lIns in schema dml-text_xsd Drilldown into wrap in schema dml-text_xsd Drilldown into vert in schema dml-text_xsd Drilldown into horzOverflow in schema dml-text_xsd Drilldown into vertOverflow in schema dml-text_xsd Drilldown into spcFirstLastPara in schema dml-text_xsd Drilldown into rot in schema dml-text_xsdXSD Diagram of CT_TextBodyProperties in schema dml-text_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TextBodyProperties">
    <xsd:sequence>
        <xsd:element name="prstTxWarp" type="CT_PresetTextShape" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Preset Text Shape</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="EG_TextAutofit" minOccurs="0" maxOccurs="1">
        </xsd:group>
        <xsd:element name="scene3d" type="CT_Scene3D" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>3D Scene Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="EG_Text3D" minOccurs="0" maxOccurs="1">
        </xsd:group>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="rot" type="ST_Angle" use="optional">
        <xsd:annotation>
            <xsd:documentation>Rotation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="spcFirstLastPara" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Paragraph Spacing</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="vertOverflow" type="ST_TextVertOverflowType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Vertical Overflow</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="horzOverflow" type="ST_TextHorzOverflowType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Horizontal Overflow</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="vert" type="ST_TextVerticalType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Vertical Text</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="wrap" type="ST_TextWrappingType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Wrapping Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="lIns" type="ST_Coordinate32" use="optional">
        <xsd:annotation>
            <xsd:documentation>Left Inset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tIns" type="ST_Coordinate32" use="optional">
        <xsd:annotation>
            <xsd:documentation>Top Inset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rIns" type="ST_Coordinate32" use="optional">
        <xsd:annotation>
            <xsd:documentation>Right Inset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bIns" type="ST_Coordinate32" use="optional">
        <xsd:annotation>
            <xsd:documentation>Bottom Inset</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="numCol" type="ST_TextColumnCount" use="optional">
        <xsd:annotation>
            <xsd:documentation>Number of Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="spcCol" type="ST_PositiveCoordinate32" use="optional">
        <xsd:annotation>
            <xsd:documentation>Space Between Columns</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rtlCol" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Columns Right-To-Left</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fromWordArt" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>From WordArt</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="anchor" type="ST_TextAnchoringType" use="optional">
        <xsd:annotation>
            <xsd:documentation>Anchor</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="anchorCtr" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Anchor Center</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="forceAA" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Force Anti-Alias</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="upright" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Text Upright</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="compatLnSpc" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Compatible Line Spacing</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
prstTxWarp a:prstTxWarp 0 1
noAutofit a:noAutofit (1) (1)
normAutofit a:normAutofit (1) (1)
spAutoFit a:spAutoFit (1) (1)
scene3d a:scene3d 0 1
sp3d a:sp3d 1 1
flatTx a:flatTx 1 1
extLst a:extLst 0 1
<xs:group> a:EG_TextAutofit 0 1
<xs:group> a:EG_Text3D 0 1
Collapse Child Attributes:
Name Type Default Value Use
rot a:rot Optional
spcFirstLastPara a:spcFirstLastPara Optional
vertOverflow a:vertOverflow Optional
horzOverflow a:horzOverflow Optional
vert a:vert Optional
wrap a:wrap Optional
lIns a:lIns Optional
tIns a:tIns Optional
rIns a:rIns Optional
bIns a:bIns Optional
numCol a:numCol Optional
spcCol a:spcCol Optional
rtlCol a:rtlCol Optional
fromWordArt a:fromWordArt Optional
anchor a:anchor Optional
anchorCtr a:anchorCtr Optional
forceAA a:forceAA Optional
upright a:upright false Optional
compatLnSpc a:compatLnSpc Optional
Collapse Derivation Tree:
Collapse References:
a:bodyPr, a:bodyPr
