Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TextPath
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml-main.xsd
Abstract

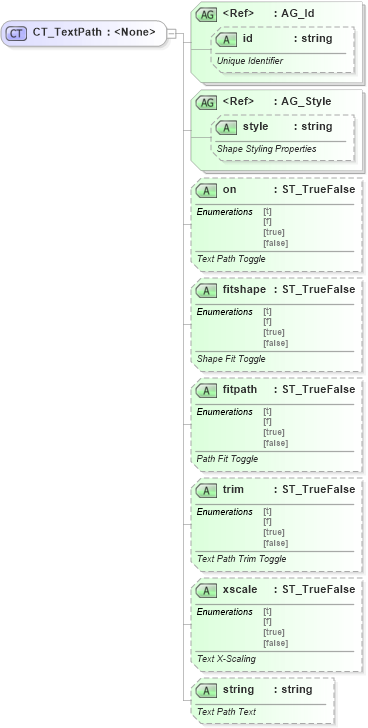

Collapse XSD Schema Diagram:
Drilldown into string in schema vml-main_xsd Drilldown into xscale in schema vml-main_xsd Drilldown into trim in schema vml-main_xsd Drilldown into fitpath in schema vml-main_xsd Drilldown into fitshape in schema vml-main_xsd Drilldown into on in schema vml-main_xsd Drilldown into style in schema vml-main_xsd Drilldown into AG_Style in schema vml-main_xsd Drilldown into id in schema vml-main_xsd Drilldown into AG_Id in schema vml-main_xsdXSD Diagram of CT_TextPath in schema vml-main_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TextPath">
    <xsd:attributeGroup ref="AG_Id" />
    <xsd:attributeGroup ref="AG_Style" />
    <xsd:attribute name="on" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Path Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fitshape" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Shape Fit Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fitpath" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Path Fit Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="trim" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Path Trim Toggle</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="xscale" type="ST_TrueFalse" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text X-Scaling</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="string" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Text Path Text</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
style v:style Optional
on v:on Optional
fitshape v:fitshape Optional
fitpath v:fitpath Optional
trim v:trim Optional
xscale v:xscale Optional
string v:string Optional
Collapse Derivation Tree:
Collapse References:
v:textpath
