Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TextPr
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-externalConnections.xsd
Abstract

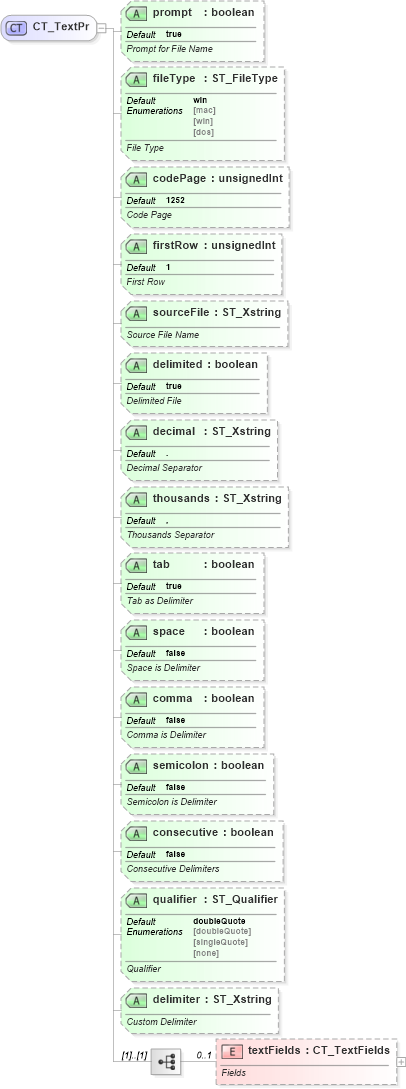

Collapse XSD Schema Diagram:
Drilldown into textFields in schema sml-externalconnections_xsd Drilldown into delimiter in schema sml-externalconnections_xsd Drilldown into qualifier in schema sml-externalconnections_xsd Drilldown into consecutive in schema sml-externalconnections_xsd Drilldown into semicolon in schema sml-externalconnections_xsd Drilldown into comma in schema sml-externalconnections_xsd Drilldown into space in schema sml-externalconnections_xsd Drilldown into tab in schema sml-externalconnections_xsd Drilldown into thousands in schema sml-externalconnections_xsd Drilldown into decimal in schema sml-externalconnections_xsd Drilldown into delimited in schema sml-externalconnections_xsd Drilldown into sourceFile in schema sml-externalconnections_xsd Drilldown into firstRow in schema sml-externalconnections_xsd Drilldown into codePage in schema sml-externalconnections_xsd Drilldown into fileType in schema sml-externalconnections_xsd Drilldown into prompt in schema sml-externalconnections_xsdXSD Diagram of CT_TextPr in schema sml-externalconnections_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TextPr">
    <xsd:sequence>
        <xsd:element name="textFields" minOccurs="0" maxOccurs="1" type="CT_TextFields">
            <xsd:annotation>
                <xsd:documentation>Fields</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="prompt" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Prompt for File Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fileType" use="optional" type="ST_FileType" default="win">
        <xsd:annotation>
            <xsd:documentation>File Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="codePage" use="optional" type="xsd:unsignedInt" default="1252">
        <xsd:annotation>
            <xsd:documentation>Code Page</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="firstRow" use="optional" type="xsd:unsignedInt" default="1">
        <xsd:annotation>
            <xsd:documentation>First Row</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sourceFile" use="optional" type="ST_Xstring" default="">
        <xsd:annotation>
            <xsd:documentation>Source File Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="delimited" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Delimited File</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="decimal" use="optional" type="ST_Xstring" default=".">
        <xsd:annotation>
            <xsd:documentation>Decimal Separator</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="thousands" use="optional" type="ST_Xstring" default=",">
        <xsd:annotation>
            <xsd:documentation>Thousands Separator</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tab" use="optional" type="xsd:boolean" default="true">
        <xsd:annotation>
            <xsd:documentation>Tab as Delimiter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="space" use="optional" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Space is Delimiter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="comma" use="optional" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Comma is Delimiter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="semicolon" use="optional" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Semicolon is Delimiter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="consecutive" use="optional" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Consecutive Delimiters</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="qualifier" use="optional" type="ST_Qualifier" default="doubleQuote">
        <xsd:annotation>
            <xsd:documentation>Qualifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="delimiter" use="optional" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Custom Delimiter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
textFields nsM:textFields 0 1
Collapse Child Attributes:
Name Type Default Value Use
prompt nsM:prompt true Optional
fileType nsM:fileType win Optional
codePage nsM:codePage 1252 Optional
firstRow nsM:firstRow 1 Optional
sourceFile nsM:sourceFile Optional
delimited nsM:delimited true Optional
decimal nsM:decimal . Optional
thousands nsM:thousands , Optional
tab nsM:tab true Optional
space nsM:space false Optional
comma nsM:comma false Optional
semicolon nsM:semicolon false Optional
consecutive nsM:consecutive false Optional
qualifier nsM:qualifier doubleQuote Optional
delimiter nsM:delimiter Optional
Collapse Derivation Tree:
Collapse References:
nsM:textPr
