Definition Type: ComplexType
Name: CT_TLAnimateEffectBehavior
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-animationInfo.xsd
Abstract
Collapse XSD Schema Diagram:

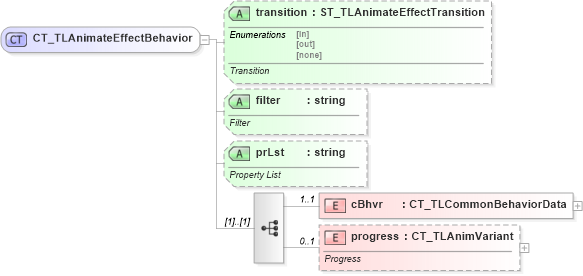

Drilldown into progress in schema pml-animationinfo_xsd Drilldown into cBhvr in schema pml-animationinfo_xsd Drilldown into prLst in schema pml-animationinfo_xsd Drilldown into filter in schema pml-animationinfo_xsd Drilldown into transition in schema pml-animationinfo_xsdXSD Diagram of CT_TLAnimateEffectBehavior in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TLAnimateEffectBehavior">
    <xsd:sequence>
        <xsd:element name="cBhvr" type="CT_TLCommonBehaviorData" minOccurs="1" maxOccurs="1" />
        <xsd:element name="progress" type="CT_TLAnimVariant" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Progress</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="transition" type="ST_TLAnimateEffectTransition" use="optional">
        <xsd:annotation>
            <xsd:documentation>Transition</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="filter" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Filter</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="prLst" type="xsd:string" use="optional">
        <xsd:annotation>
            <xsd:documentation>Property List</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cBhvr p:cBhvr 1 1
progress p:progress 0 1
Collapse Child Attributes:
Name Type Default Value Use
transition p:transition Optional
filter p:filter Optional
prLst p:prLst Optional
Collapse Derivation Tree:
Collapse References:
p:animEffect
