Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TLBuildDiagram
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-animationInfo.xsd
Abstract

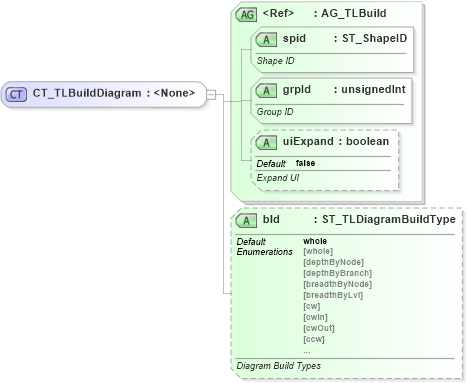

Collapse XSD Schema Diagram:
Drilldown into bld in schema pml-animationinfo_xsd Drilldown into uiExpand in schema pml-animationinfo_xsd Drilldown into grpId in schema pml-animationinfo_xsd Drilldown into spid in schema pml-animationinfo_xsd Drilldown into AG_TLBuild in schema pml-animationinfo_xsdXSD Diagram of CT_TLBuildDiagram in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TLBuildDiagram">
    <xsd:attributeGroup ref="AG_TLBuild" />
    <xsd:attribute name="bld" type="ST_TLDiagramBuildType" use="optional" default="whole">
        <xsd:annotation>
            <xsd:documentation>Diagram Build Types</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
spid p:spid Required
grpId p:grpId Required
uiExpand p:uiExpand false Optional
bld p:bld whole Optional
Collapse Derivation Tree:
Collapse References:
p:bldDgm
