Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_TLBuildParagraph
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-animationInfo.xsd
Abstract

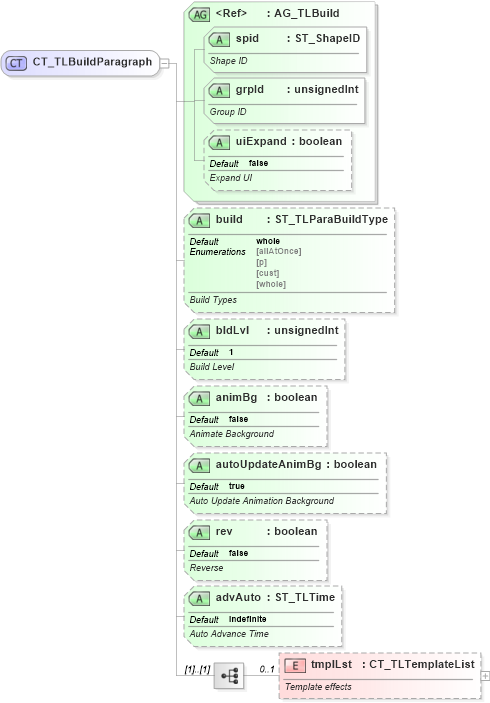

Collapse XSD Schema Diagram:
Drilldown into tmplLst in schema pml-animationinfo_xsd Drilldown into advAuto in schema pml-animationinfo_xsd Drilldown into rev in schema pml-animationinfo_xsd Drilldown into autoUpdateAnimBg in schema pml-animationinfo_xsd Drilldown into animBg in schema pml-animationinfo_xsd Drilldown into bldLvl in schema pml-animationinfo_xsd Drilldown into build in schema pml-animationinfo_xsd Drilldown into uiExpand in schema pml-animationinfo_xsd Drilldown into grpId in schema pml-animationinfo_xsd Drilldown into spid in schema pml-animationinfo_xsd Drilldown into AG_TLBuild in schema pml-animationinfo_xsdXSD Diagram of CT_TLBuildParagraph in schema pml-animationinfo_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TLBuildParagraph">
    <xsd:sequence>
        <xsd:element name="tmplLst" type="CT_TLTemplateList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Template effects</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attributeGroup ref="AG_TLBuild" />
    <xsd:attribute name="build" type="ST_TLParaBuildType" use="optional" default="whole">
        <xsd:annotation>
            <xsd:documentation>Build Types</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="bldLvl" type="xsd:unsignedInt" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>Build Level</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="animBg" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Animate Background</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="autoUpdateAnimBg" type="xsd:boolean" default="true" use="optional">
        <xsd:annotation>
            <xsd:documentation>Auto Update Animation Background</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rev" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Reverse</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="advAuto" type="ST_TLTime" use="optional" default="indefinite">
        <xsd:annotation>
            <xsd:documentation>Auto Advance Time</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tmplLst p:tmplLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
spid p:spid Required
grpId p:grpId Required
uiExpand p:uiExpand false Optional
build p:build whole Optional
bldLvl p:bldLvl 1 Optional
animBg p:animBg false Optional
autoUpdateAnimBg p:autoUpdateAnimBg true Optional
rev p:rev false Optional
advAuto p:advAuto indefinite Optional
Collapse Derivation Tree:
  • CT_TLBuildParagraph
Collapse References:
p:bldP
