Definition Type: ComplexType
Name: CT_TransformEffect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd
Abstract
Collapse XSD Schema Diagram:

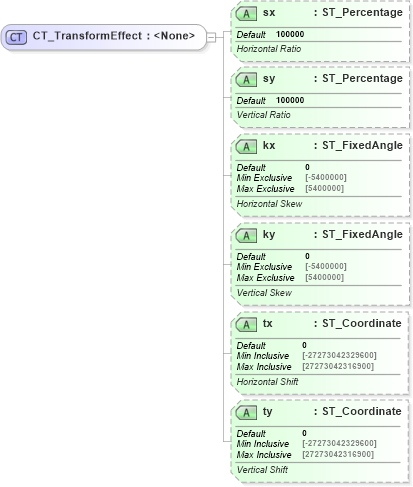

Drilldown into ty in schema dml-shapeeffects_xsd Drilldown into tx in schema dml-shapeeffects_xsd Drilldown into ky in schema dml-shapeeffects_xsd Drilldown into kx in schema dml-shapeeffects_xsd Drilldown into sy in schema dml-shapeeffects_xsd Drilldown into sx in schema dml-shapeeffects_xsdXSD Diagram of CT_TransformEffect in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_TransformEffect">
    <xsd:attribute name="sx" type="ST_Percentage" use="optional" default="100000">
        <xsd:annotation>
            <xsd:documentation>Horizontal Ratio</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sy" type="ST_Percentage" use="optional" default="100000">
        <xsd:annotation>
            <xsd:documentation>Vertical Ratio</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="kx" type="ST_FixedAngle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Horizontal Skew</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ky" type="ST_FixedAngle" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Vertical Skew</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="tx" type="ST_Coordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Horizontal Shift</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="ty" type="ST_Coordinate" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Vertical Shift</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
sx a:sx 100000 Optional
sy a:sy 100000 Optional
kx a:kx 0 Optional
ky a:ky 0 Optional
tx a:tx 0 Optional
ty a:ty 0 Optional
Collapse Derivation Tree:
  • CT_TransformEffect
Collapse References:
a:xfrm
