Definition Type: ComplexType
Name: CT_Trendline
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

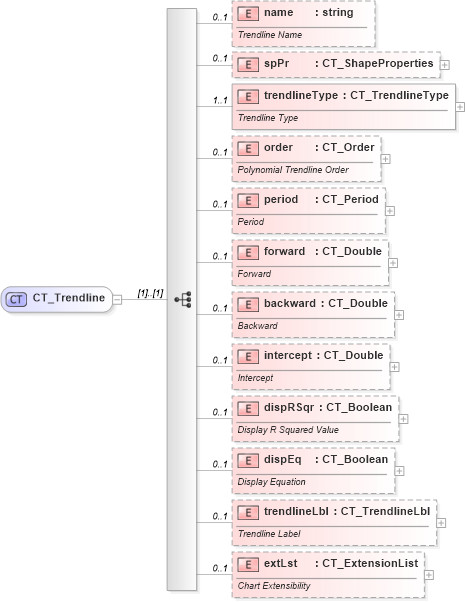

Drilldown into extLst in schema dml-chart_xsd Drilldown into trendlineLbl in schema dml-chart_xsd Drilldown into dispEq in schema dml-chart_xsd Drilldown into dispRSqr in schema dml-chart_xsd Drilldown into intercept in schema dml-chart_xsd Drilldown into backward in schema dml-chart_xsd Drilldown into forward in schema dml-chart_xsd Drilldown into period in schema dml-chart_xsd Drilldown into order in schema dml-chart_xsd Drilldown into trendlineType in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into name in schema dml-chart_xsdXSD Diagram of CT_Trendline in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Trendline">
    <xsd:sequence>
        <xsd:element name="name" type="xsd:string" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Trendline Name</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="trendlineType" type="CT_TrendlineType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Trendline Type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="order" type="CT_Order" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Polynomial Trendline Order</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="period" type="CT_Period" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Period</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="forward" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Forward</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="backward" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Backward</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="intercept" type="CT_Double" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Intercept</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dispRSqr" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Display R Squared Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dispEq" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Display Equation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="trendlineLbl" type="CT_TrendlineLbl" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Trendline Label</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name 0 1
spPr nsA:spPr 0 1
trendlineType nsA:trendlineType 1 1
order nsA:order 0 1
period nsA:period 0 1
forward nsA:forward 0 1
backward nsA:backward 0 1
intercept nsA:intercept 0 1
dispRSqr nsA:dispRSqr 0 1
dispEq nsA:dispEq 0 1
trendlineLbl nsA:trendlineLbl 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:trendline, nsA:trendline, nsA:trendline, nsA:trendline, nsA:trendline
