Definition Type: ComplexType
Name: CT_UpDownBars
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

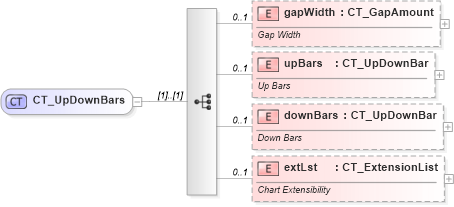

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into downBars in schema dml-chart_xsd Drilldown into upBars in schema dml-chart_xsd Drilldown into gapWidth in schema dml-chart_xsdXSD Diagram of CT_UpDownBars in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_UpDownBars">
    <xsd:sequence>
        <xsd:element name="gapWidth" type="CT_GapAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gap Width</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="upBars" type="CT_UpDownBar" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Up Bars</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="downBars" type="CT_UpDownBar" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Down Bars</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
gapWidth nsA:gapWidth 0 1
upBars nsA:upBars 0 1
downBars nsA:downBars 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:upDownBars, nsA:upDownBars
