Definition Type: ComplexType
Name: CT_View3D
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

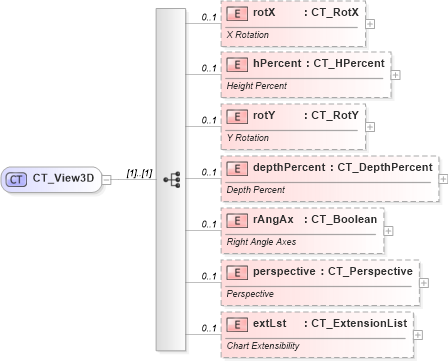

Drilldown into extLst in schema dml-chart_xsd Drilldown into perspective in schema dml-chart_xsd Drilldown into rAngAx in schema dml-chart_xsd Drilldown into depthPercent in schema dml-chart_xsd Drilldown into rotY in schema dml-chart_xsd Drilldown into hPercent in schema dml-chart_xsd Drilldown into rotX in schema dml-chart_xsdXSD Diagram of CT_View3D in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_View3D">
    <xsd:sequence>
        <xsd:element name="rotX" type="CT_RotX" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>X Rotation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hPercent" type="CT_HPercent" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Height Percent</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="rotY" type="CT_RotY" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Y Rotation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="depthPercent" type="CT_DepthPercent" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Depth Percent</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="rAngAx" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Right Angle Axes</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="perspective" type="CT_Perspective" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Perspective</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rotX nsA:rotX 0 1
hPercent nsA:hPercent 0 1
rotY nsA:rotY 0 1
depthPercent nsA:depthPercent 0 1
rAngAx nsA:rAngAx 0 1
perspective nsA:perspective 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:view3D
