Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_WebPublishObject
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-workbook.xsd
Abstract

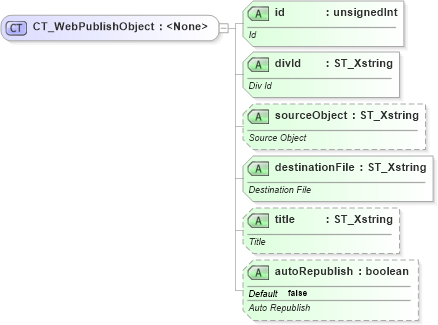

Collapse XSD Schema Diagram:
Drilldown into autoRepublish in schema sml-workbook_xsd Drilldown into title in schema sml-workbook_xsd Drilldown into destinationFile in schema sml-workbook_xsd Drilldown into sourceObject in schema sml-workbook_xsd Drilldown into divId in schema sml-workbook_xsd Drilldown into id in schema sml-workbook_xsdXSD Diagram of CT_WebPublishObject in schema sml-workbook_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_WebPublishObject">
    <xsd:attribute name="id" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="divId" type="ST_Xstring" use="required">
        <xsd:annotation>
            <xsd:documentation>Div Id</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sourceObject" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Source Object</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="destinationFile" type="ST_Xstring" use="required">
        <xsd:annotation>
            <xsd:documentation>Destination File</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="title" type="ST_Xstring" use="optional">
        <xsd:annotation>
            <xsd:documentation>Title</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="autoRepublish" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Auto Republish</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
id nsM:id Required
divId nsM:divId Required
sourceObject nsM:sourceObject Optional
destinationFile nsM:destinationFile Required
title nsM:title Optional
autoRepublish nsM:autoRepublish false Optional
Collapse Derivation Tree:
Collapse References:
nsM:webPublishObject
