Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_WebSettings
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

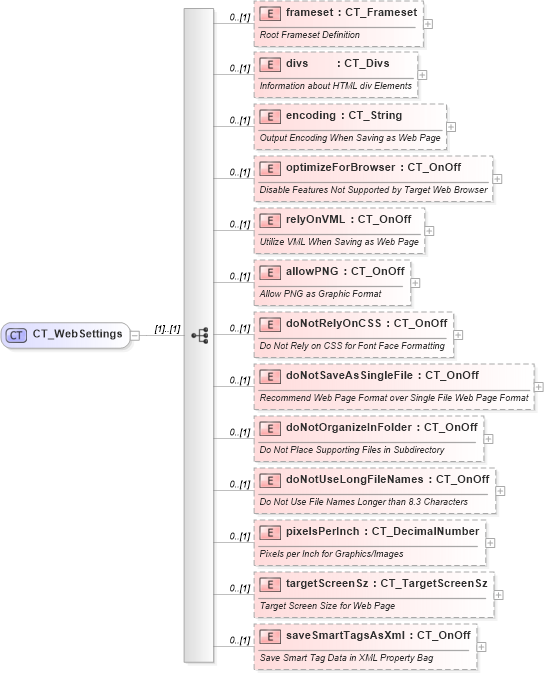

Collapse XSD Schema Diagram:
Drilldown into saveSmartTagsAsXml in schema wml_xsd Drilldown into targetScreenSz in schema wml_xsd Drilldown into pixelsPerInch in schema wml_xsd Drilldown into doNotUseLongFileNames in schema wml_xsd Drilldown into doNotOrganizeInFolder in schema wml_xsd Drilldown into doNotSaveAsSingleFile in schema wml_xsd Drilldown into doNotRelyOnCSS in schema wml_xsd Drilldown into allowPNG in schema wml_xsd Drilldown into relyOnVML in schema wml_xsd Drilldown into optimizeForBrowser in schema wml_xsd Drilldown into encoding in schema wml_xsd Drilldown into divs in schema wml_xsd Drilldown into frameset in schema wml_xsdXSD Diagram of CT_WebSettings in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_WebSettings">
    <xsd:sequence>
        <xsd:element name="frameset" type="CT_Frameset" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Root Frameset Definition</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="divs" type="CT_Divs" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Information about HTML div Elements</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="encoding" type="CT_String" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Output Encoding When Saving as Web Page</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="optimizeForBrowser" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Disable Features Not Supported by Target Web Browser</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="relyOnVML" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Utilize VML When Saving as Web Page</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="allowPNG" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Allow PNG as Graphic Format</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="doNotRelyOnCSS" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Do Not Rely on CSS for Font Face Formatting</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="doNotSaveAsSingleFile" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Recommend Web Page Format over Single File Web Page Format</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="doNotOrganizeInFolder" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Do Not Place Supporting Files in Subdirectory</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="doNotUseLongFileNames" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Do Not Use File Names Longer than 8.3 Characters</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pixelsPerInch" type="CT_DecimalNumber" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Pixels per Inch for Graphics/Images</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="targetScreenSz" type="CT_TargetScreenSz" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Target Screen Size for Web Page</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="saveSmartTagsAsXml" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Save Smart Tag Data in XML Property Bag</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
frameset w:frameset 0 (1)
divs w:divs 0 (1)
encoding w:encoding 0 (1)
optimizeForBrowser w:optimizeForBrowser 0 (1)
relyOnVML w:relyOnVML 0 (1)
allowPNG w:allowPNG 0 (1)
doNotRelyOnCSS w:doNotRelyOnCSS 0 (1)
doNotSaveAsSingleFile w:doNotSaveAsSingleFile 0 (1)
doNotOrganizeInFolder w:doNotOrganizeInFolder 0 (1)
doNotUseLongFileNames w:doNotUseLongFileNames 0 (1)
pixelsPerInch w:pixelsPerInch 0 (1)
targetScreenSz w:targetScreenSz 0 (1)
saveSmartTagsAsXml w:saveSmartTagsAsXml 0 (1)
Collapse Derivation Tree:
Collapse References:
w:webSettings
