Definition Type: ComplexType
Name: CT_WrapPath
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Containing Schema: dml-wordprocessingDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

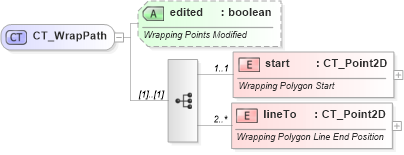

Drilldown into lineTo in schema dml-wordprocessingdrawing_xsd Drilldown into start in schema dml-wordprocessingdrawing_xsd Drilldown into edited in schema dml-wordprocessingdrawing_xsdXSD Diagram of CT_WrapPath in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_WrapPath">
    <xsd:sequence>
        <xsd:element name="start" type="a:CT_Point2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Wrapping Polygon Start</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lineTo" type="a:CT_Point2D" minOccurs="2" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Wrapping Polygon Line End Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="edited" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Wrapping Points Modified</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
start wp:start 1 1
lineTo wp:lineTo 2 unbounded
Collapse Child Attributes:
Name Type Default Value Use
edited wp:edited Optional
Collapse Derivation Tree:
Collapse References:
wp:wrapPolygon, wp:wrapPolygon
