Definition Type: ComplexType
Name: CT_WrapSquare
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Containing Schema: dml-wordprocessingDrawing.xsd
Abstract

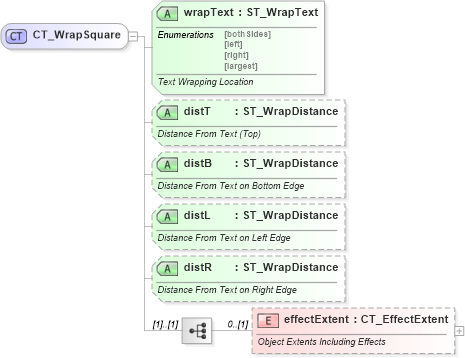

Collapse XSD Schema Diagram:
Drilldown into effectExtent in schema dml-wordprocessingdrawing_xsd Drilldown into distR in schema dml-wordprocessingdrawing_xsd Drilldown into distL in schema dml-wordprocessingdrawing_xsd Drilldown into distB in schema dml-wordprocessingdrawing_xsd Drilldown into distT in schema dml-wordprocessingdrawing_xsd Drilldown into wrapText in schema dml-wordprocessingdrawing_xsdXSD Diagram of CT_WrapSquare in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_WrapSquare">
    <xsd:sequence>
        <xsd:element name="effectExtent" type="CT_EffectExtent" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Object Extents Including Effects</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="wrapText" type="ST_WrapText" use="required">
        <xsd:annotation>
            <xsd:documentation>Text Wrapping Location</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distT" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text (Top)</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distB" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Bottom Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distL" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Left Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distR" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Right Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
effectExtent wp:effectExtent 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
wrapText wp:wrapText Required
distT wp:distT Optional
distB wp:distB Optional
distL wp:distL Optional
distR wp:distR Optional
Collapse Derivation Tree:
Collapse References:
wp:wrapSquare
