Definition Type: ComplexType
Name: CT_WrapTight
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Containing Schema: dml-wordprocessingDrawing.xsd
Abstract

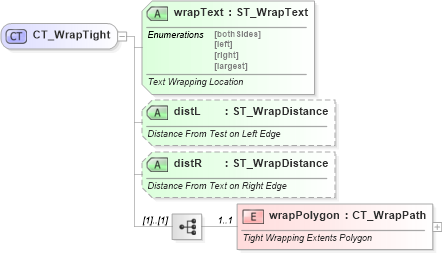

Collapse XSD Schema Diagram:
Drilldown into wrapPolygon in schema dml-wordprocessingdrawing_xsd Drilldown into distR in schema dml-wordprocessingdrawing_xsd Drilldown into distL in schema dml-wordprocessingdrawing_xsd Drilldown into wrapText in schema dml-wordprocessingdrawing_xsdXSD Diagram of CT_WrapTight in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_WrapTight">
    <xsd:sequence>
        <xsd:element name="wrapPolygon" type="CT_WrapPath" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Tight Wrapping Extents Polygon</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="wrapText" type="ST_WrapText" use="required">
        <xsd:annotation>
            <xsd:documentation>Text Wrapping Location</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distL" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Test on Left Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="distR" type="ST_WrapDistance" use="optional">
        <xsd:annotation>
            <xsd:documentation>Distance From Text on Right Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
wrapPolygon wp:wrapPolygon 1 1
Collapse Child Attributes:
Name Type Default Value Use
wrapText wp:wrapText Required
distL wp:distL Optional
distR wp:distR Optional
Collapse Derivation Tree:
Collapse References:
wp:wrapTight
