Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_XYAdjustHandle
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeGeometry.xsd
Abstract

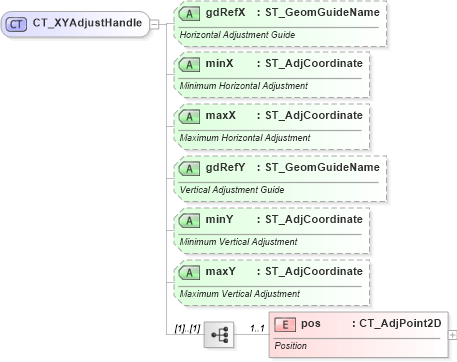

Collapse XSD Schema Diagram:
Drilldown into pos in schema dml-shapegeometry_xsd Drilldown into maxY in schema dml-shapegeometry_xsd Drilldown into minY in schema dml-shapegeometry_xsd Drilldown into gdRefY in schema dml-shapegeometry_xsd Drilldown into maxX in schema dml-shapegeometry_xsd Drilldown into minX in schema dml-shapegeometry_xsd Drilldown into gdRefX in schema dml-shapegeometry_xsdXSD Diagram of CT_XYAdjustHandle in schema dml-shapegeometry_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_XYAdjustHandle">
    <xsd:sequence>
        <xsd:element name="pos" type="CT_AdjPoint2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="gdRefX" type="ST_GeomGuideName" use="optional">
        <xsd:annotation>
            <xsd:documentation>Horizontal Adjustment Guide</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minX" type="ST_AdjCoordinate" use="optional">
        <xsd:annotation>
            <xsd:documentation>Minimum Horizontal Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="maxX" type="ST_AdjCoordinate" use="optional">
        <xsd:annotation>
            <xsd:documentation>Maximum Horizontal Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="gdRefY" type="ST_GeomGuideName" use="optional">
        <xsd:annotation>
            <xsd:documentation>Vertical Adjustment Guide</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="minY" type="ST_AdjCoordinate" use="optional">
        <xsd:annotation>
            <xsd:documentation>Minimum Vertical Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="maxY" type="ST_AdjCoordinate" use="optional">
        <xsd:annotation>
            <xsd:documentation>Maximum Vertical Adjustment</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pos a:pos 1 1
Collapse Child Attributes:
Name Type Default Value Use
gdRefX a:gdRefX Optional
minX a:minX Optional
maxX a:maxX Optional
gdRefY a:gdRefY Optional
minY a:minY Optional
maxY a:maxY Optional
Collapse Derivation Tree:
  • CT_XYAdjustHandle
Collapse References:
a:ahXY
