Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: ctrlPr
Namespace: http://schemas.openxmlformats.org/officeDocument/2006/math
Type: m:CT_CtrlPr
Containing Schema: shared-math.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

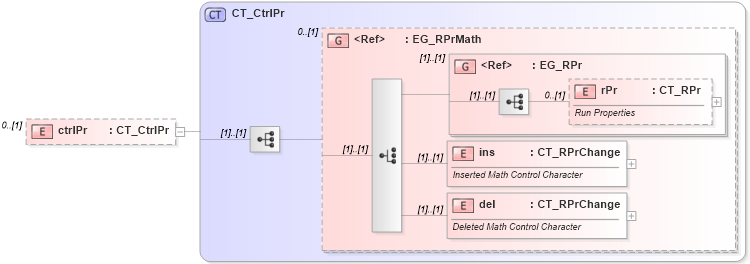

Collapse XSD Schema Diagram:
Drilldown into del in schema wml_xsd Drilldown into ins in schema wml_xsd Drilldown into rPr in schema wml_xsd Drilldown into EG_RPr in schema wml_xsd Drilldown into EG_RPrMath in schema wml_xsd Drilldown into CT_CtrlPr in schema shared-math_xsdXSD Diagram of ctrlPr in schema shared-math_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="ctrlPr" type="CT_CtrlPr" minOccurs="0">
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rPr w:rPr 0 (1)
ins w:ins (1) (1)
del w:del (1) (1)
<xs:group> w:EG_RPrMath 0 (1)
<xs:group> w:EG_RPr (1) (1)
Collapse Derivation Tree:
