Definition Type: Element
Name: dataModel
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_DataModel
Containing Schema: dml-diagramDataModel.xsd
Abstract
Documentation:
Data Model

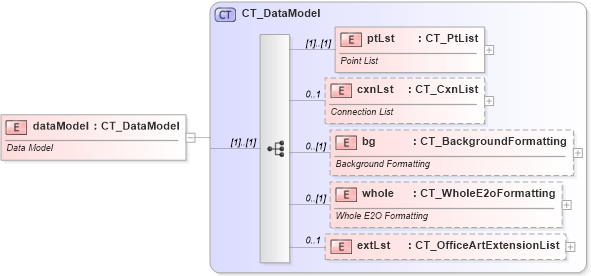

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-diagramdatamodel_xsd Drilldown into whole in schema dml-diagramdatamodel_xsd Drilldown into bg in schema dml-diagramdatamodel_xsd Drilldown into cxnLst in schema dml-diagramdatamodel_xsd Drilldown into ptLst in schema dml-diagramdatamodel_xsd Drilldown into CT_DataModel in schema dml-diagramdatamodel_xsdXSD Diagram of dataModel in schema dml-diagramdatamodel_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="dataModel" type="CT_DataModel">
    <xsd:annotation>
        <xsd:documentation>Data Model</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ptLst nsC:ptLst (1) (1)
cxnLst nsC:cxnLst 0 1
bg nsC:bg 0 (1)
whole nsC:whole 0 (1)
extLst nsC:extLst 0 1
Collapse Derivation Tree:
