Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: diagram
Namespace: urn:schemas-microsoft-com:office:office
Type: o:CT_Diagram
Containing Schema: vml-officeDrawing.xsd
Abstract
Documentation:
VML Diagram
Collapse XSD Schema Diagram:

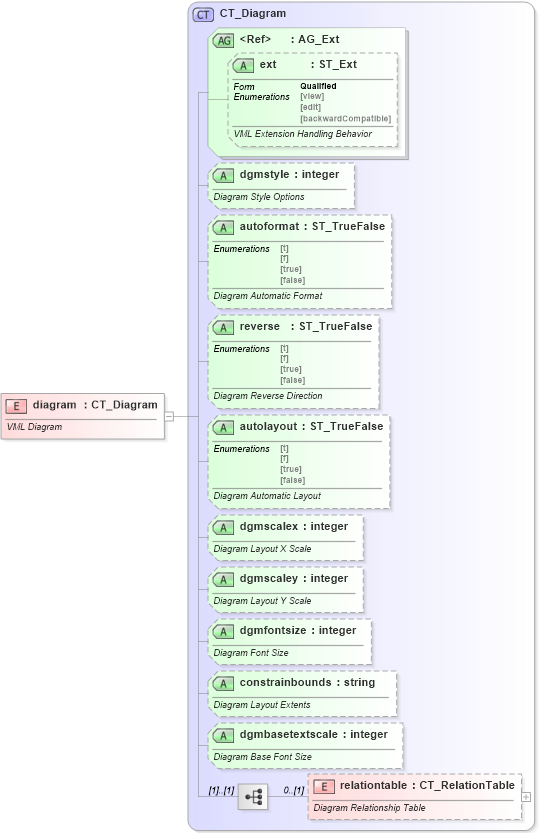

Drilldown into relationtable in schema vml-officedrawing_xsd Drilldown into dgmbasetextscale in schema vml-officedrawing_xsd Drilldown into constrainbounds in schema vml-officedrawing_xsd Drilldown into dgmfontsize in schema vml-officedrawing_xsd Drilldown into dgmscaley in schema vml-officedrawing_xsd Drilldown into dgmscalex in schema vml-officedrawing_xsd Drilldown into autolayout in schema vml-officedrawing_xsd Drilldown into reverse in schema vml-officedrawing_xsd Drilldown into autoformat in schema vml-officedrawing_xsd Drilldown into dgmstyle in schema vml-officedrawing_xsd Drilldown into ext in schema vml-main_xsd Drilldown into AG_Ext in schema vml-main_xsd Drilldown into CT_Diagram in schema vml-officedrawing_xsdXSD Diagram of diagram in schema vml-officedrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="diagram" type="CT_Diagram">
    <xsd:annotation>
        <xsd:documentation>VML Diagram</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
relationtable o:relationtable 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ext v:ext (Optional)
dgmstyle o:dgmstyle Optional
autoformat o:autoformat Optional
reverse o:reverse Optional
autolayout o:autolayout Optional
dgmscalex o:dgmscalex Optional
dgmscaley o:dgmscaley Optional
dgmfontsize o:dgmfontsize Optional
constrainbounds o:constrainbounds Optional
dgmbasetextscale o:dgmbasetextscale Optional
Collapse Derivation Tree:
