Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Group
Name: EG_AxShared
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd

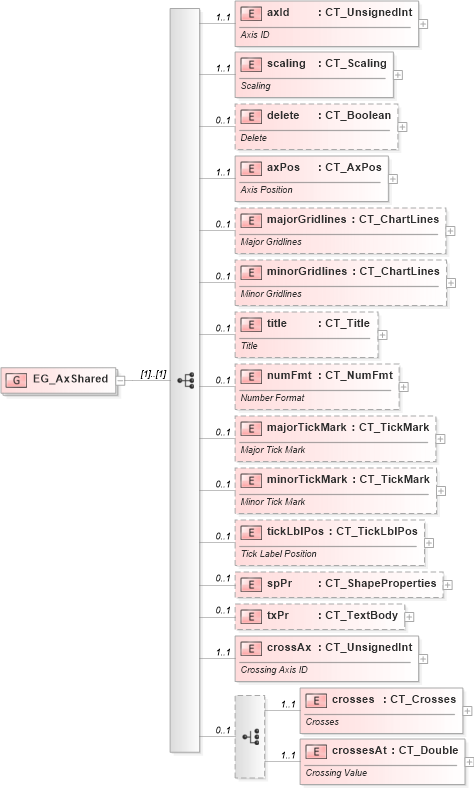

Collapse XSD Schema Diagram:
Drilldown into crossesAt in schema dml-chart_xsd Drilldown into crosses in schema dml-chart_xsd Drilldown into crossAx in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into tickLblPos in schema dml-chart_xsd Drilldown into minorTickMark in schema dml-chart_xsd Drilldown into majorTickMark in schema dml-chart_xsd Drilldown into numFmt in schema dml-chart_xsd Drilldown into title in schema dml-chart_xsd Drilldown into minorGridlines in schema dml-chart_xsd Drilldown into majorGridlines in schema dml-chart_xsd Drilldown into axPos in schema dml-chart_xsd Drilldown into delete in schema dml-chart_xsd Drilldown into scaling in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsdXSD Diagram of EG_AxShared in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_AxShared">
    <xsd:sequence>
        <xsd:element name="axId" type="CT_UnsignedInt" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Axis ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="scaling" type="CT_Scaling" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Scaling</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="delete" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Delete</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="axPos" type="CT_AxPos" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Axis Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="majorGridlines" type="CT_ChartLines" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Major Gridlines</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="minorGridlines" type="CT_ChartLines" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Minor Gridlines</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="title" type="CT_Title" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Title</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="numFmt" type="CT_NumFmt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Number Format</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="majorTickMark" type="CT_TickMark" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Major Tick Mark</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="minorTickMark" type="CT_TickMark" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Minor Tick Mark</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tickLblPos" type="CT_TickLblPos" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Tick Label Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="txPr" type="a:CT_TextBody" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="crossAx" type="CT_UnsignedInt" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Crossing Axis ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="0" maxOccurs="1">
            <xsd:element name="crosses" type="CT_Crosses" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Crosses</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="crossesAt" type="CT_Double" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Crossing Value</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
axId nsA:axId 1 1
scaling nsA:scaling 1 1
delete nsA:delete 0 1
axPos nsA:axPos 1 1
majorGridlines nsA:majorGridlines 0 1
minorGridlines nsA:minorGridlines 0 1
title nsA:title 0 1
numFmt nsA:numFmt 0 1
majorTickMark nsA:majorTickMark 0 1
minorTickMark nsA:minorTickMark 0 1
tickLblPos nsA:tickLblPos 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
crossAx nsA:crossAx 1 1
crosses nsA:crosses 1 1
crossesAt nsA:crossesAt 1 1
