Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Group
Name: EG_BarChartShared
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd

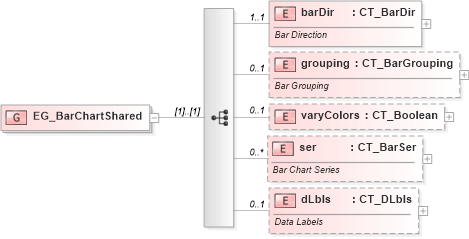

Collapse XSD Schema Diagram:
Drilldown into dLbls in schema dml-chart_xsd Drilldown into ser in schema dml-chart_xsd Drilldown into varyColors in schema dml-chart_xsd Drilldown into grouping in schema dml-chart_xsd Drilldown into barDir in schema dml-chart_xsdXSD Diagram of EG_BarChartShared in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_BarChartShared">
    <xsd:sequence>
        <xsd:element name="barDir" type="CT_BarDir" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bar Direction</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="grouping" type="CT_BarGrouping" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bar Grouping</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="varyColors" type="CT_Boolean" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="ser" type="CT_BarSer" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Bar Chart Series</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="dLbls" type="CT_DLbls" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Data Labels</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barDir nsA:barDir 1 1
grouping nsA:grouping 0 1
varyColors nsA:varyColors 0 1
ser nsA:ser 0 unbounded
dLbls nsA:dLbls 0 1
