Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Group
Name: EG_ColorChoice
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd

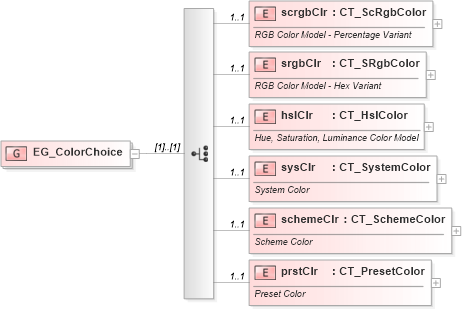

Collapse XSD Schema Diagram:
Drilldown into prstClr in schema dml-basetypes_xsd Drilldown into schemeClr in schema dml-basetypes_xsd Drilldown into sysClr in schema dml-basetypes_xsd Drilldown into hslClr in schema dml-basetypes_xsd Drilldown into srgbClr in schema dml-basetypes_xsd Drilldown into scrgbClr in schema dml-basetypes_xsdXSD Diagram of EG_ColorChoice in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_ColorChoice">
    <xsd:choice>
        <xsd:element name="scrgbClr" type="CT_ScRgbColor" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>RGB Color Model - Percentage Variant</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="srgbClr" type="CT_SRgbColor" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>RGB Color Model - Hex Variant</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hslClr" type="CT_HslColor" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hue, Saturation, Luminance Color Model</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sysClr" type="CT_SystemColor" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>System Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="schemeClr" type="CT_SchemeColor" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Scheme Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="prstClr" type="CT_PresetColor" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Preset Color</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scrgbClr a:scrgbClr 1 1
srgbClr a:srgbClr 1 1
hslClr a:hslClr 1 1
sysClr a:sysClr 1 1
schemeClr a:schemeClr 1 1
prstClr a:prstClr 1 1
