Definition Type: Group
Name: EG_ColorTransform
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-baseTypes.xsd

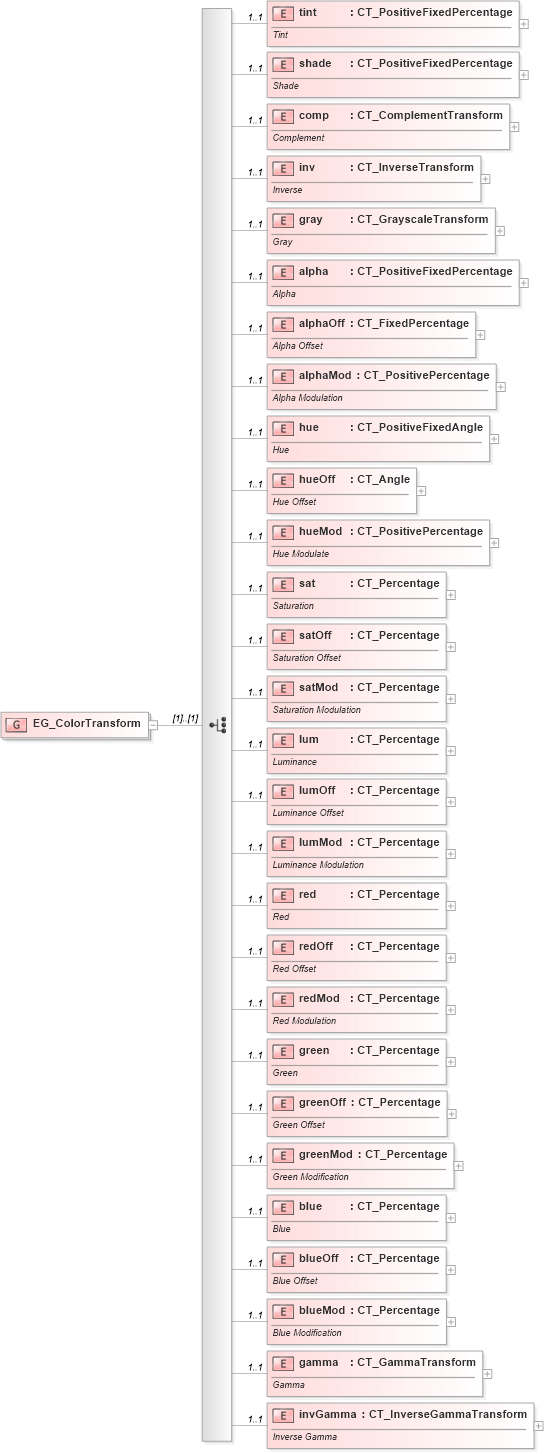

Collapse XSD Schema Diagram:
Drilldown into invGamma in schema dml-basetypes_xsd Drilldown into gamma in schema dml-basetypes_xsd Drilldown into blueMod in schema dml-basetypes_xsd Drilldown into blueOff in schema dml-basetypes_xsd Drilldown into blue in schema dml-basetypes_xsd Drilldown into greenMod in schema dml-basetypes_xsd Drilldown into greenOff in schema dml-basetypes_xsd Drilldown into green in schema dml-basetypes_xsd Drilldown into redMod in schema dml-basetypes_xsd Drilldown into redOff in schema dml-basetypes_xsd Drilldown into red in schema dml-basetypes_xsd Drilldown into lumMod in schema dml-basetypes_xsd Drilldown into lumOff in schema dml-basetypes_xsd Drilldown into lum in schema dml-basetypes_xsd Drilldown into satMod in schema dml-basetypes_xsd Drilldown into satOff in schema dml-basetypes_xsd Drilldown into sat in schema dml-basetypes_xsd Drilldown into hueMod in schema dml-basetypes_xsd Drilldown into hueOff in schema dml-basetypes_xsd Drilldown into hue in schema dml-basetypes_xsd Drilldown into alphaMod in schema dml-basetypes_xsd Drilldown into alphaOff in schema dml-basetypes_xsd Drilldown into alpha in schema dml-basetypes_xsd Drilldown into gray in schema dml-basetypes_xsd Drilldown into inv in schema dml-basetypes_xsd Drilldown into comp in schema dml-basetypes_xsd Drilldown into shade in schema dml-basetypes_xsd Drilldown into tint in schema dml-basetypes_xsdXSD Diagram of EG_ColorTransform in schema dml-basetypes_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_ColorTransform">
    <xsd:choice>
        <xsd:element name="tint" type="CT_PositiveFixedPercentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Tint</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="shade" type="CT_PositiveFixedPercentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shade</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="comp" type="CT_ComplementTransform" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Complement</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="inv" type="CT_InverseTransform" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Inverse</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="gray" type="CT_GrayscaleTransform" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gray</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alpha" type="CT_PositiveFixedPercentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaOff" type="CT_FixedPercentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alphaMod" type="CT_PositivePercentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alpha Modulation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hue" type="CT_PositiveFixedAngle" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hue</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hueOff" type="CT_Angle" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hue Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hueMod" type="CT_PositivePercentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hue Modulate</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="sat" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Saturation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="satOff" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Saturation Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="satMod" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Saturation Modulation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lum" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Luminance</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lumOff" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Luminance Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lumMod" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Luminance Modulation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="red" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Red</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="redOff" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Red Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="redMod" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Red Modulation</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="green" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Green</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="greenOff" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Green Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="greenMod" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Green Modification</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="blue" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Blue</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="blueOff" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Blue Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="blueMod" type="CT_Percentage" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Blue Modification</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="gamma" type="CT_GammaTransform" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gamma</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="invGamma" type="CT_InverseGammaTransform" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Inverse Gamma</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tint a:tint 1 1
shade a:shade 1 1
comp a:comp 1 1
inv a:inv 1 1
gray a:gray 1 1
alpha a:alpha 1 1
alphaOff a:alphaOff 1 1
alphaMod a:alphaMod 1 1
hue a:hue 1 1
hueOff a:hueOff 1 1
hueMod a:hueMod 1 1
sat a:sat 1 1
satOff a:satOff 1 1
satMod a:satMod 1 1
lum a:lum 1 1
lumOff a:lumOff 1 1
lumMod a:lumMod 1 1
red a:red 1 1
redOff a:redOff 1 1
redMod a:redMod 1 1
green a:green 1 1
greenOff a:greenOff 1 1
greenMod a:greenMod 1 1
blue a:blue 1 1
blueOff a:blueOff 1 1
blueMod a:blueMod 1 1
gamma a:gamma 1 1
invGamma a:invGamma 1 1
