Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Group
Name: EG_DLblShared
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd

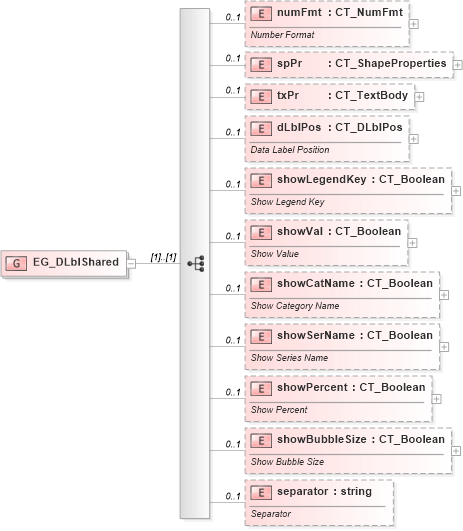

Collapse XSD Schema Diagram:
Drilldown into separator in schema dml-chart_xsd Drilldown into showBubbleSize in schema dml-chart_xsd Drilldown into showPercent in schema dml-chart_xsd Drilldown into showSerName in schema dml-chart_xsd Drilldown into showCatName in schema dml-chart_xsd Drilldown into showVal in schema dml-chart_xsd Drilldown into showLegendKey in schema dml-chart_xsd Drilldown into dLblPos in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into numFmt in schema dml-chart_xsdXSD Diagram of EG_DLblShared in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_DLblShared">
    <xsd:sequence>
        <xsd:element name="numFmt" type="CT_NumFmt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Number Format</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="txPr" type="a:CT_TextBody" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="dLblPos" type="CT_DLblPos" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Data Label Position</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showLegendKey" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Legend Key</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showVal" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showCatName" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Category Name</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showSerName" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Series Name</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showPercent" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Percent</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="showBubbleSize" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Show Bubble Size</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="separator" type="xsd:string" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Separator</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
numFmt nsA:numFmt 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
dLblPos nsA:dLblPos 0 1
showLegendKey nsA:showLegendKey 0 1
showVal nsA:showVal 0 1
showCatName nsA:showCatName 0 1
showSerName nsA:showSerName 0 1
showPercent nsA:showPercent 0 1
showBubbleSize nsA:showBubbleSize 0 1
separator nsA:separator 0 1
