Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Group
Name: EG_EffectProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeEffects.xsd

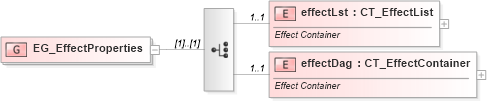

Collapse XSD Schema Diagram:
Drilldown into effectDag in schema dml-shapeeffects_xsd Drilldown into effectLst in schema dml-shapeeffects_xsdXSD Diagram of EG_EffectProperties in schema dml-shapeeffects_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_EffectProperties">
    <xsd:choice>
        <xsd:element name="effectLst" type="CT_EffectList" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Effect Container</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="effectDag" type="CT_EffectContainer" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Effect Container</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
effectLst a:effectLst 1 1
effectDag a:effectDag 1 1
