Definition Type: Group
Name: EG_LineFillProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeLineProperties.xsd

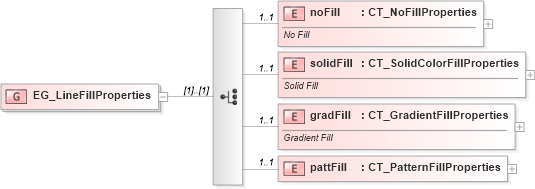

Collapse XSD Schema Diagram:
Drilldown into pattFill in schema dml-shapelineproperties_xsd Drilldown into gradFill in schema dml-shapelineproperties_xsd Drilldown into solidFill in schema dml-shapelineproperties_xsd Drilldown into noFill in schema dml-shapelineproperties_xsdXSD Diagram of EG_LineFillProperties in schema dml-shapelineproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_LineFillProperties">
    <xsd:choice>
        <xsd:element name="noFill" type="CT_NoFillProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>No Fill</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="solidFill" type="CT_SolidColorFillProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Solid Fill</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="gradFill" type="CT_GradientFillProperties" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gradient Fill</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pattFill" type="CT_PatternFillProperties" minOccurs="1" maxOccurs="1" />
    </xsd:choice>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
noFill a:noFill 1 1
solidFill a:solidFill 1 1
gradFill a:gradFill 1 1
pattFill a:pattFill 1 1
