Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Group
Name: EG_SerShared
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd

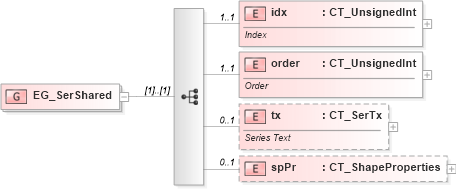

Collapse XSD Schema Diagram:
Drilldown into spPr in schema dml-chart_xsd Drilldown into tx in schema dml-chart_xsd Drilldown into order in schema dml-chart_xsd Drilldown into idx in schema dml-chart_xsdXSD Diagram of EG_SerShared in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_SerShared">
    <xsd:sequence>
        <xsd:element name="idx" type="CT_UnsignedInt" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Index</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="order" type="CT_UnsignedInt" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Order</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="tx" type="CT_SerTx" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Series Text</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
idx nsA:idx 1 1
order nsA:order 1 1
tx nsA:tx 0 1
spPr nsA:spPr 0 1
