Definition Type: Group
Name: EG_WrapType
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Containing Schema: dml-wordprocessingDrawing.xsd

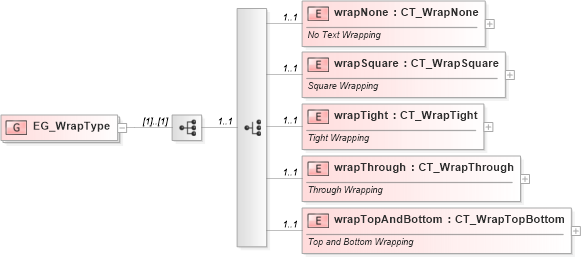

Collapse XSD Schema Diagram:
Drilldown into wrapTopAndBottom in schema dml-wordprocessingdrawing_xsd Drilldown into wrapThrough in schema dml-wordprocessingdrawing_xsd Drilldown into wrapTight in schema dml-wordprocessingdrawing_xsd Drilldown into wrapSquare in schema dml-wordprocessingdrawing_xsd Drilldown into wrapNone in schema dml-wordprocessingdrawing_xsdXSD Diagram of EG_WrapType in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:group name="EG_WrapType">
    <xsd:sequence>
        <xsd:choice minOccurs="1" maxOccurs="1">
            <xsd:element name="wrapNone" type="CT_WrapNone" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>No Text Wrapping</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wrapSquare" type="CT_WrapSquare" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Square Wrapping</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wrapTight" type="CT_WrapTight" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Tight Wrapping</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wrapThrough" type="CT_WrapThrough" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Through Wrapping</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="wrapTopAndBottom" type="CT_WrapTopBottom" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Top and Bottom Wrapping</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
wrapNone wp:wrapNone 1 1
wrapSquare wp:wrapSquare 1 1
wrapTight wp:wrapTight 1 1
wrapThrough wp:wrapThrough 1 1
wrapTopAndBottom wp:wrapTopAndBottom 1 1
