Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: f
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_CellFormula
Containing Schema: sml-sheet.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Formula

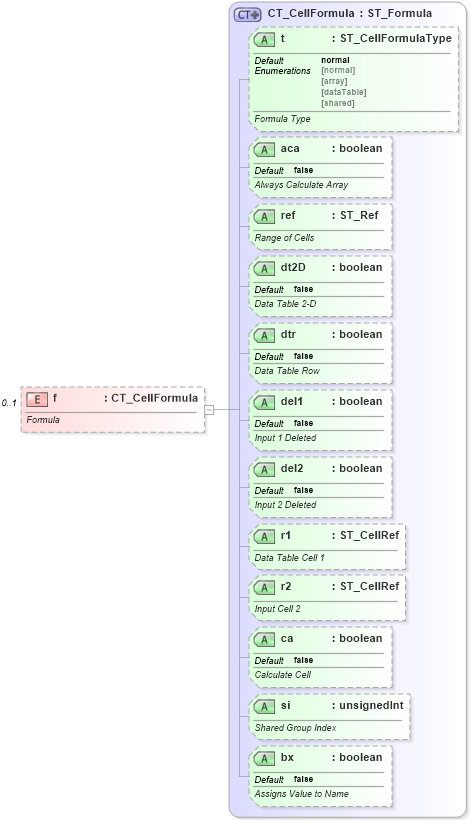

Collapse XSD Schema Diagram:
Drilldown into bx in schema sml-sheet_xsd Drilldown into si in schema sml-sheet_xsd Drilldown into ca in schema sml-sheet_xsd Drilldown into r2 in schema sml-sheet_xsd Drilldown into r1 in schema sml-sheet_xsd Drilldown into del2 in schema sml-sheet_xsd Drilldown into del1 in schema sml-sheet_xsd Drilldown into dtr in schema sml-sheet_xsd Drilldown into dt2D in schema sml-sheet_xsd Drilldown into ref in schema sml-sheet_xsd Drilldown into aca in schema sml-sheet_xsd Drilldown into t in schema sml-sheet_xsd Drilldown into CT_CellFormula in schema sml-sheet_xsdXSD Diagram of f in schema sml-sheet_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="f" type="CT_CellFormula" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Formula</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
t nsM:t normal Optional
aca nsM:aca false Optional
ref nsM:ref Optional
dt2D nsM:dt2D false Optional
dtr nsM:dtr false Optional
del1 nsM:del1 false Optional
del2 nsM:del2 false Optional
r1 nsM:r1 Optional
r2 nsM:r2 Optional
ca nsM:ca false Optional
si nsM:si Optional
bx nsM:bx false Optional
Collapse Derivation Tree:
