Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: from
Namespace: http://schemas.openxmlformats.org/drawingml/2006/spreadsheetDrawing
Type: nsF:CT_Marker
Containing Schema: dml-spreadsheetDrawing.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

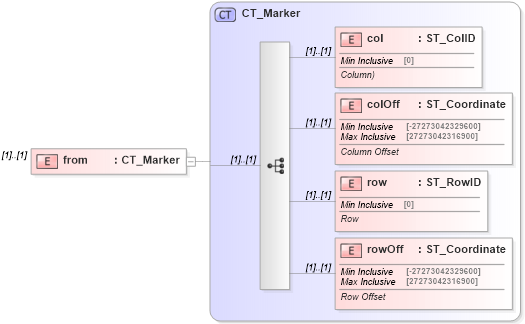

Collapse XSD Schema Diagram:
Drilldown into rowOff in schema dml-spreadsheetdrawing_xsd Drilldown into row in schema dml-spreadsheetdrawing_xsd Drilldown into colOff in schema dml-spreadsheetdrawing_xsd Drilldown into col in schema dml-spreadsheetdrawing_xsd Drilldown into CT_Marker in schema dml-spreadsheetdrawing_xsdXSD Diagram of from in schema dml-spreadsheetdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="from" type="CT_Marker" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
col nsF:col (1) (1)
colOff nsF:colOff (1) (1)
row nsF:row (1) (1)
rowOff nsF:rowOff (1) (1)
Collapse Derivation Tree:
