Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: headers
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_RevisionHeaders
Containing Schema: sml-sharedWorkbookRevisions.xsd
Abstract
Documentation:
Revision Headers

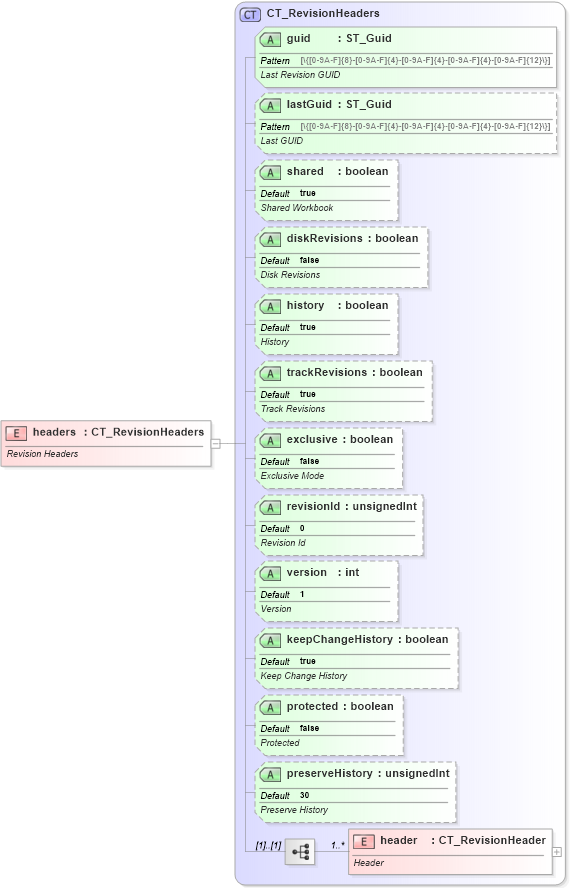

Collapse XSD Schema Diagram:
Drilldown into header in schema sml-sharedworkbookrevisions_xsd Drilldown into preserveHistory in schema sml-sharedworkbookrevisions_xsd Drilldown into protected in schema sml-sharedworkbookrevisions_xsd Drilldown into keepChangeHistory in schema sml-sharedworkbookrevisions_xsd Drilldown into version in schema sml-sharedworkbookrevisions_xsd Drilldown into revisionId in schema sml-sharedworkbookrevisions_xsd Drilldown into exclusive in schema sml-sharedworkbookrevisions_xsd Drilldown into trackRevisions in schema sml-sharedworkbookrevisions_xsd Drilldown into history in schema sml-sharedworkbookrevisions_xsd Drilldown into diskRevisions in schema sml-sharedworkbookrevisions_xsd Drilldown into shared in schema sml-sharedworkbookrevisions_xsd Drilldown into lastGuid in schema sml-sharedworkbookrevisions_xsd Drilldown into guid in schema sml-sharedworkbookrevisions_xsd Drilldown into CT_RevisionHeaders in schema sml-sharedworkbookrevisions_xsdXSD Diagram of headers in schema sml-sharedworkbookrevisions_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="headers" type="CT_RevisionHeaders">
    <xsd:annotation>
        <xsd:documentation>Revision Headers</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
header nsM:header 1 unbounded
Collapse Child Attributes:
Name Type Default Value Use
guid nsM:guid Required
lastGuid nsM:lastGuid Optional
shared nsM:shared true (Optional)
diskRevisions nsM:diskRevisions false (Optional)
history nsM:history true (Optional)
trackRevisions nsM:trackRevisions true (Optional)
exclusive nsM:exclusive false (Optional)
revisionId nsM:revisionId 0 (Optional)
version nsM:version 1 (Optional)
keepChangeHistory nsM:keepChangeHistory true Optional
protected nsM:protected false Optional
preserveHistory nsM:preserveHistory 30 (Optional)
Collapse Derivation Tree:
