Definition Type: Element
Name: n
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Number
Containing Schema: sml-pivotTable.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Numeric

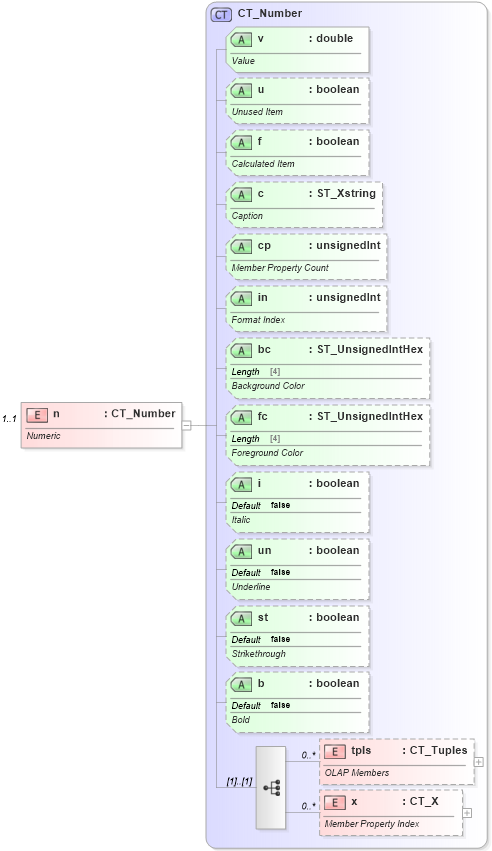

Collapse XSD Schema Diagram:
Drilldown into x in schema sml-pivottable_xsd Drilldown into tpls in schema sml-pivottable_xsd Drilldown into b in schema sml-pivottable_xsd Drilldown into st in schema sml-pivottable_xsd Drilldown into un in schema sml-pivottable_xsd Drilldown into i in schema sml-pivottable_xsd Drilldown into fc in schema sml-pivottable_xsd Drilldown into bc in schema sml-pivottable_xsd Drilldown into in in schema sml-pivottable_xsd Drilldown into cp in schema sml-pivottable_xsd Drilldown into c in schema sml-pivottable_xsd Drilldown into f in schema sml-pivottable_xsd Drilldown into u in schema sml-pivottable_xsd Drilldown into v in schema sml-pivottable_xsd Drilldown into CT_Number in schema sml-pivottable_xsdXSD Diagram of n in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="n" type="CT_Number" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Numeric</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tpls nsM:tpls 0 unbounded
x nsM:x 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
v nsM:v Required
u nsM:u (Optional)
f nsM:f (Optional)
c nsM:c (Optional)
cp nsM:cp (Optional)
in nsM:in Optional
bc nsM:bc Optional
fc nsM:fc Optional
i nsM:i false Optional
un nsM:un false Optional
st nsM:st false Optional
b nsM:b false Optional
Collapse Derivation Tree:
