Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: oMath
Namespace: http://schemas.openxmlformats.org/officeDocument/2006/math
Type: m:CT_OMath
Containing Schema: shared-math.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract
Documentation:
Office Math

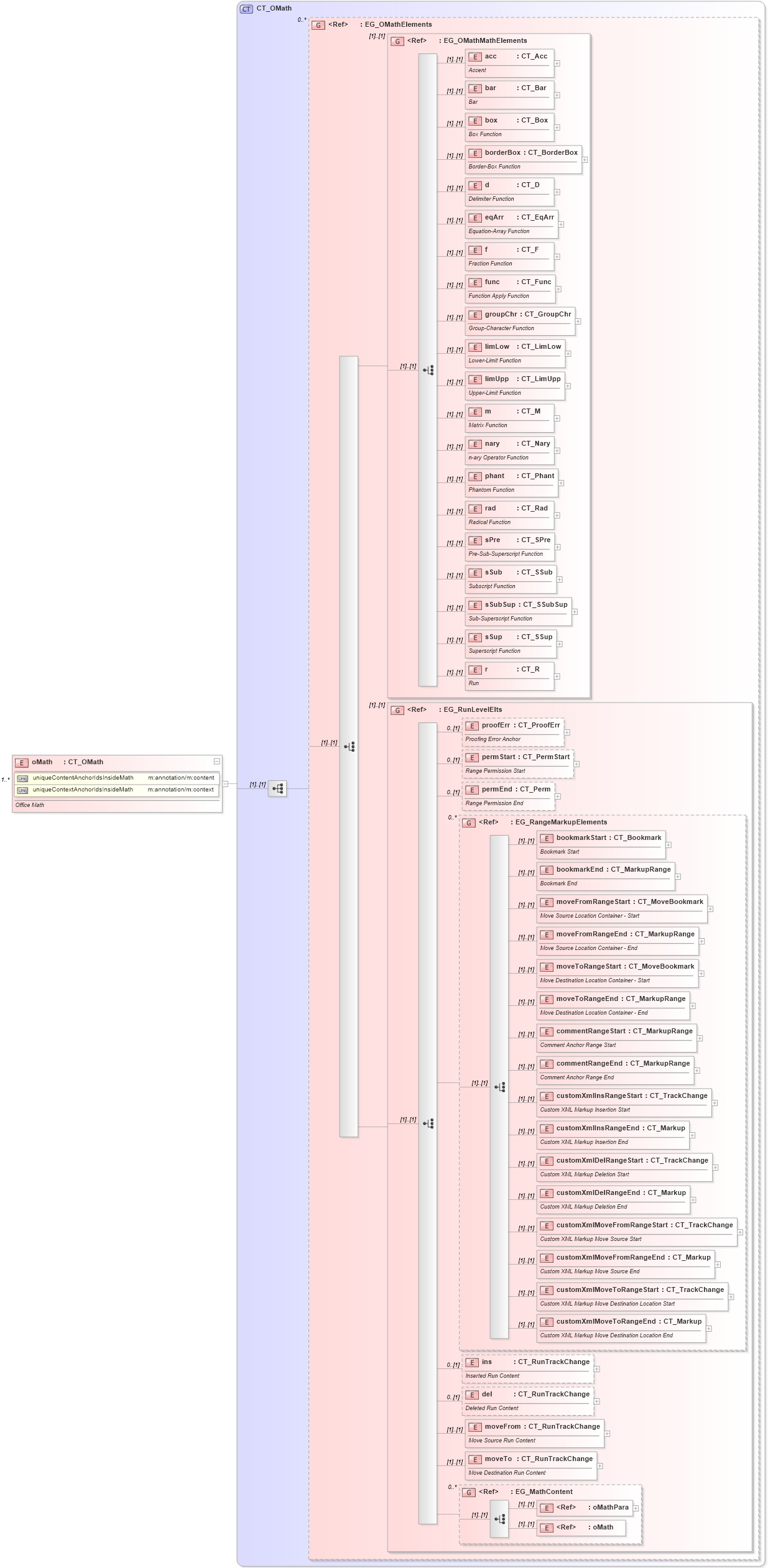

Collapse XSD Schema Diagram:
Drilldown into oMath in schema shared-math_xsd Drilldown into oMathPara in schema shared-math_xsd Drilldown into EG_MathContent in schema wml_xsd Drilldown into moveTo in schema wml_xsd Drilldown into moveFrom in schema wml_xsd Drilldown into del in schema wml_xsd Drilldown into ins in schema wml_xsd Drilldown into customXmlMoveToRangeEnd in schema wml_xsd Drilldown into customXmlMoveToRangeStart in schema wml_xsd Drilldown into customXmlMoveFromRangeEnd in schema wml_xsd Drilldown into customXmlMoveFromRangeStart in schema wml_xsd Drilldown into customXmlDelRangeEnd in schema wml_xsd Drilldown into customXmlDelRangeStart in schema wml_xsd Drilldown into customXmlInsRangeEnd in schema wml_xsd Drilldown into customXmlInsRangeStart in schema wml_xsd Drilldown into commentRangeEnd in schema wml_xsd Drilldown into commentRangeStart in schema wml_xsd Drilldown into moveToRangeEnd in schema wml_xsd Drilldown into moveToRangeStart in schema wml_xsd Drilldown into moveFromRangeEnd in schema wml_xsd Drilldown into moveFromRangeStart in schema wml_xsd Drilldown into bookmarkEnd in schema wml_xsd Drilldown into bookmarkStart in schema wml_xsd Drilldown into EG_RangeMarkupElements in schema wml_xsd Drilldown into permEnd in schema wml_xsd Drilldown into permStart in schema wml_xsd Drilldown into proofErr in schema wml_xsd Drilldown into EG_RunLevelElts in schema wml_xsd Drilldown into r in schema shared-math_xsd Drilldown into sSup in schema shared-math_xsd Drilldown into sSubSup in schema shared-math_xsd Drilldown into sSub in schema shared-math_xsd Drilldown into sPre in schema shared-math_xsd Drilldown into rad in schema shared-math_xsd Drilldown into phant in schema shared-math_xsd Drilldown into nary in schema shared-math_xsd Drilldown into m in schema shared-math_xsd Drilldown into limUpp in schema shared-math_xsd Drilldown into limLow in schema shared-math_xsd Drilldown into groupChr in schema shared-math_xsd Drilldown into func in schema shared-math_xsd Drilldown into f in schema shared-math_xsd Drilldown into eqArr in schema shared-math_xsd Drilldown into d in schema shared-math_xsd Drilldown into borderBox in schema shared-math_xsd Drilldown into box in schema shared-math_xsd Drilldown into bar in schema shared-math_xsd Drilldown into acc in schema shared-math_xsd Drilldown into EG_OMathMathElements in schema shared-math_xsd Drilldown into EG_OMathElements in schema shared-math_xsd Drilldown into CT_OMath in schema shared-math_xsdXSD Diagram of oMath in schema shared-math_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="oMath" type="CT_OMath" minOccurs="1" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Office Math</xsd:documentation>
    </xsd:annotation>
    <xsd:unique name="uniqueContentAnchorIdsInsideMath">
        <xsd:selector xpath="m:annotation/m:content" />
        <xsd:field xpath="@id" />
    </xsd:unique>
    <xsd:unique name="uniqueContextAnchorIdsInsideMath">
        <xsd:selector xpath="m:annotation/m:context" />
        <xsd:field xpath="@id" />
    </xsd:unique>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
acc m:acc (1) (1)
bar m:bar (1) (1)
box m:box (1) (1)
borderBox m:borderBox (1) (1)
d m:d (1) (1)
eqArr m:eqArr (1) (1)
f m:f (1) (1)
func m:func (1) (1)
groupChr m:groupChr (1) (1)
limLow m:limLow (1) (1)
limUpp m:limUpp (1) (1)
m m:m (1) (1)
nary m:nary (1) (1)
phant m:phant (1) (1)
rad m:rad (1) (1)
sPre m:sPre (1) (1)
sSub m:sSub (1) (1)
sSubSup m:sSubSup (1) (1)
sSup m:sSup (1) (1)
r m:r (1) (1)
proofErr w:proofErr 0 (1)
permStart w:permStart 0 (1)
permEnd w:permEnd 0 (1)
bookmarkStart w:bookmarkStart (1) (1)
bookmarkEnd w:bookmarkEnd (1) (1)
moveFromRangeStart w:moveFromRangeStart (1) (1)
moveFromRangeEnd w:moveFromRangeEnd (1) (1)
moveToRangeStart w:moveToRangeStart (1) (1)
moveToRangeEnd w:moveToRangeEnd (1) (1)
commentRangeStart w:commentRangeStart (1) (1)
commentRangeEnd w:commentRangeEnd (1) (1)
customXmlInsRangeStart w:customXmlInsRangeStart (1) (1)
customXmlInsRangeEnd w:customXmlInsRangeEnd (1) (1)
customXmlDelRangeStart w:customXmlDelRangeStart (1) (1)
customXmlDelRangeEnd w:customXmlDelRangeEnd (1) (1)
customXmlMoveFromRangeStart w:customXmlMoveFromRangeStart (1) (1)
customXmlMoveFromRangeEnd w:customXmlMoveFromRangeEnd (1) (1)
customXmlMoveToRangeStart w:customXmlMoveToRangeStart (1) (1)
customXmlMoveToRangeEnd w:customXmlMoveToRangeEnd (1) (1)
ins w:ins 0 (1)
del w:del 0 (1)
moveFrom w:moveFrom (1) (1)
moveTo w:moveTo (1) (1)
oMathPara m:oMathPara (1) (1)
oMath m:oMath (1) (1)
<xs:group> m:EG_OMathElements 0 unbounded
<xs:group> m:EG_OMathMathElements (1) (1)
<xs:group> w:EG_RunLevelElts (1) (1)
<xs:group> w:EG_RangeMarkupElements 0 unbounded
<xs:group> w:EG_MathContent 0 unbounded
Collapse Derivation Tree:
