Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: path
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_Path2D
Containing Schema: dml-shapeGeometry.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Shape Path
Collapse XSD Schema Diagram:

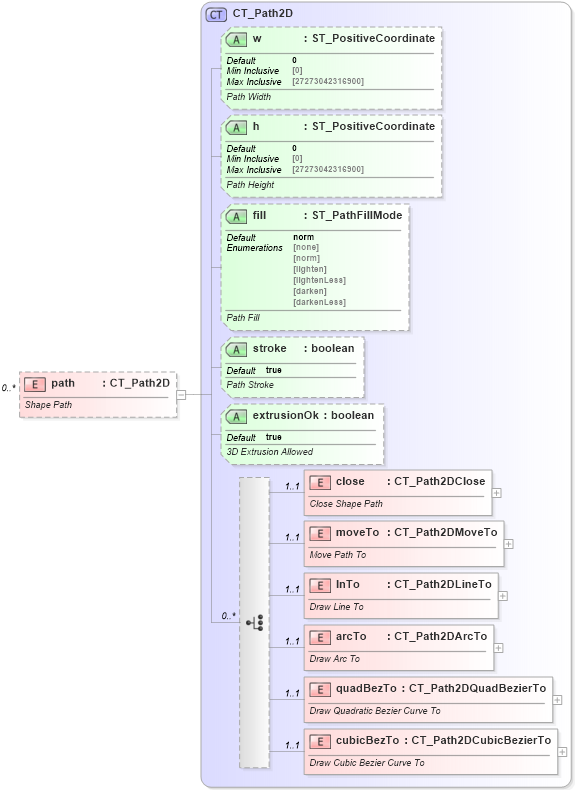

Drilldown into cubicBezTo in schema dml-shapegeometry_xsd Drilldown into quadBezTo in schema dml-shapegeometry_xsd Drilldown into arcTo in schema dml-shapegeometry_xsd Drilldown into lnTo in schema dml-shapegeometry_xsd Drilldown into moveTo in schema dml-shapegeometry_xsd Drilldown into close in schema dml-shapegeometry_xsd Drilldown into extrusionOk in schema dml-shapegeometry_xsd Drilldown into stroke in schema dml-shapegeometry_xsd Drilldown into fill in schema dml-shapegeometry_xsd Drilldown into h in schema dml-shapegeometry_xsd Drilldown into w in schema dml-shapegeometry_xsd Drilldown into CT_Path2D in schema dml-shapegeometry_xsdXSD Diagram of path in schema dml-shapegeometry_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="path" type="CT_Path2D" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Shape Path</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
close a:close 1 1
moveTo a:moveTo 1 1
lnTo a:lnTo 1 1
arcTo a:arcTo 1 1
quadBezTo a:quadBezTo 1 1
cubicBezTo a:cubicBezTo 1 1
Collapse Child Attributes:
Name Type Default Value Use
w a:w 0 Optional
h a:h 0 Optional
fill a:fill norm Optional
stroke a:stroke true Optional
extrusionOk a:extrusionOk true Optional
Collapse Derivation Tree:
