Definition Type: Element
Name: pict
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Type: w:CT_Picture
Containing Schema: wml.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
VML Object
Collapse XSD Schema Diagram:

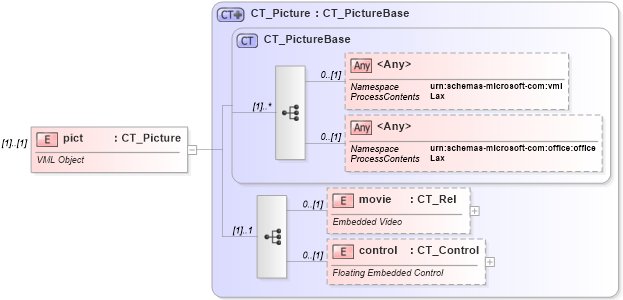

Drilldown into control in schema wml_xsd Drilldown into movie in schema wml_xsd Drilldown into CT_PictureBase in schema wml_xsd Drilldown into CT_Picture in schema wml_xsdXSD Diagram of pict in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="pict" type="CT_Picture">
    <xsd:annotation>
        <xsd:documentation>VML Object</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
movie w:movie 0 (1)
control w:control 0 (1)
<xs:any> Allowed namespace: 'urn:schemas-microsoft-com:vml' 0 (1)
<xs:any> Allowed namespace: 'urn:schemas-microsoft-com:office:office' 0 (1)
Collapse Derivation Tree:
